H24 CAB

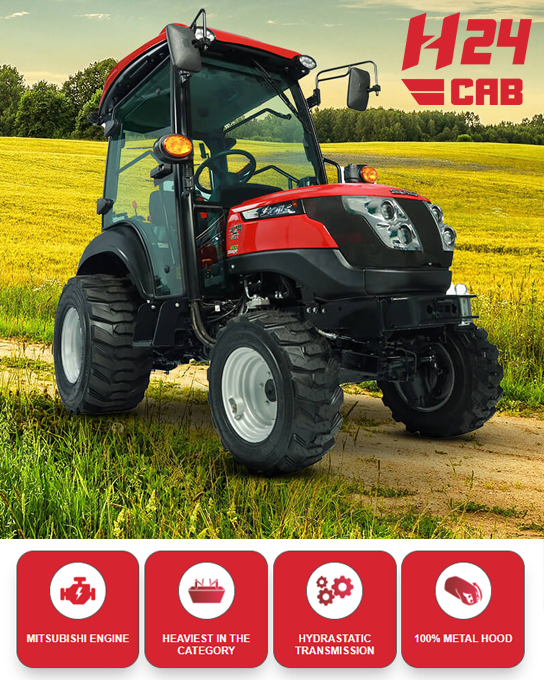

The H24 Cab wraps the H24’s proven 24-hp chassis and drivetrain in a comfortable, climate-controlled enclosure for reliable all-season operation. Its sealed cab with heating and optional air conditioning keeps operators productive and protected from wind, rain, and dust.

Large windows, good visibility, and work lights make loader and implement tasks safer and easier, day or night. Built on the same durable platform, the H24 Cab delivers full PTO and hydraulic compatibility with loaders and common rear implements while reducing operator fatigue.

MSRP (Cab & Loader Included)

$---

DOWNLOAD BROCHURE

H24 CAB BROCHURE

BUILD A PACKAGE

H24 CAB
HYDROSTATIC

The H24 Cab takes the rugged, 24-hp H24 platform and packages it in a weather-sealed, climate-controlled operator enclosure so you can work comfortably in rain, dust, cold or heat. Large windows and well-placed work lights deliver excellent visibility for loader and implement tasks, while the durable chassis, dependable PTO and robust hydraulics preserve full compatibility with loaders, mowers and rear implements. Thoughtful ergonomics—quiet cab, comfortable seating, and easy-to-reach controls—reduce operator fatigue during long shifts, and routine service points remain accessible to keep downtime low. In short, the H24 Cab brings all-season comfort and productivity to the dependable H24 workhorse.

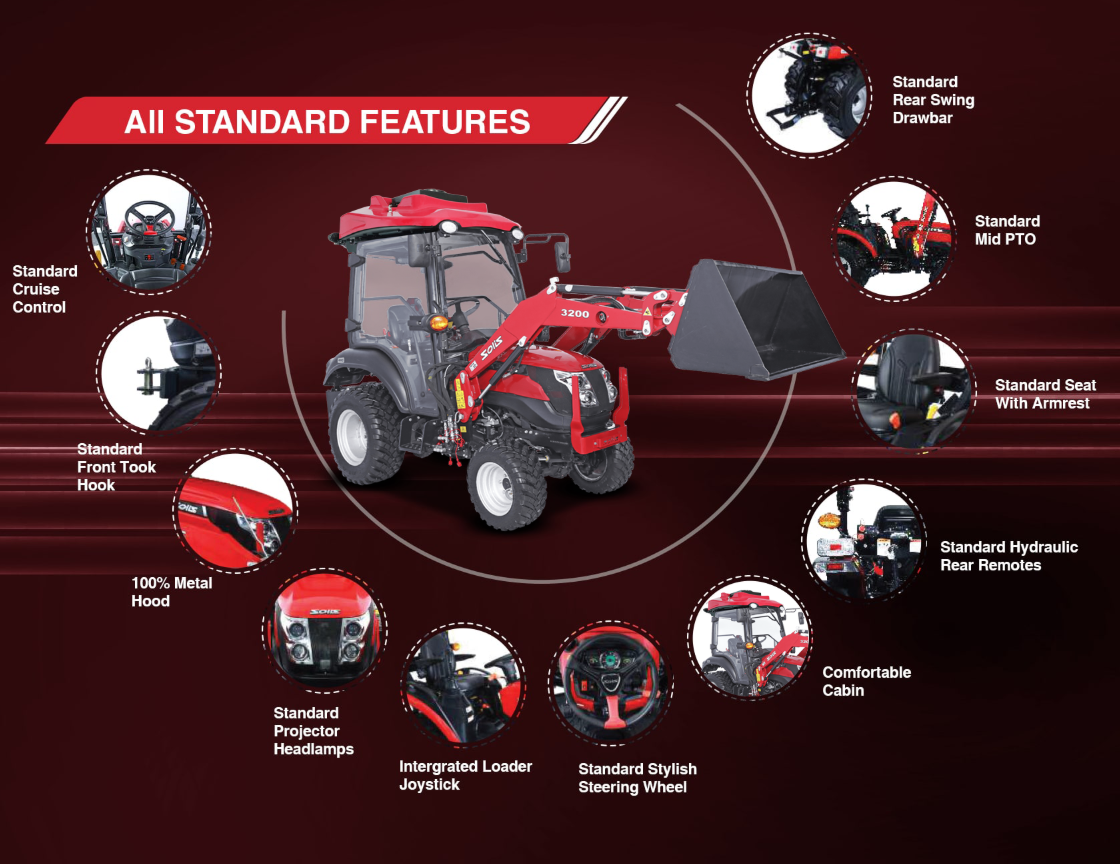

Enclosed, climate-controlled cab with heating (and optional A/C) for all-season comfort.

Large glazing and work lights for superior visibility during loader and implement work.

Same 24-hp durable chassis, PTO and hydraulic capacity — fully loader and implement compatible.

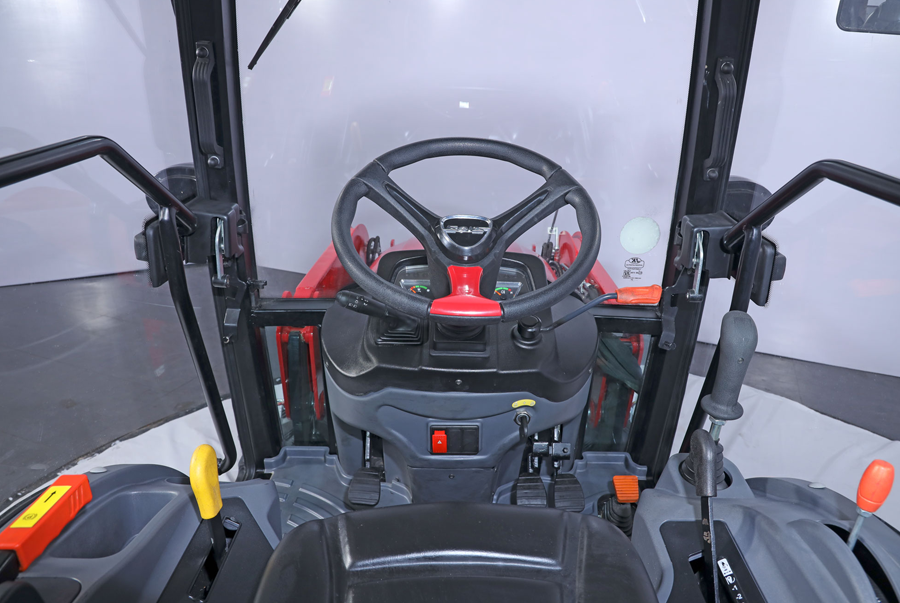

Quiet, ergonomic operator station and easy service access to maximize uptime and reduce fatigue.

TECHNICAL SPECIFICATIONS

Engine	Mitsubishi
Engine Type	3-Cylinder, Diesel
Horsepower	24 HP
Aspiration	Natural
Cubic Capacity	80.42
Rated RPM	2500
Torque	76.3 Nm@2000

Gearbox	HST 2 Range
Forward/Reverse	Twin Touch Pedals
PTO	540 RPM @2451
PTO Actuation	Button Operated
Steering	Power Steering
Drive	4WD

3 Point Linkage	CAT1N
3-Point Lift Capacity	1,323
Hydraulic Rear Remotes	1DA
Hydraulic Flow (gpm)	3.98

Weight	2776
Wheelbase	61.8
Length	113.98
Width	49
Height	84
Ground Clearance	9.44

Industrial	23×8.50-12 & 33×15.5-16.5
Turf	23×8.50-12 & 33×15.5-16.5
Turf	25×8.50-14 & 13.6×16
Agriculture	6×12 & 8.3×20
Agriculture	7x14 & 8.3x24
Radial	6.5/80-12 & 280/70R18
Galaxy Pro	220/55R12 & 280/70R16

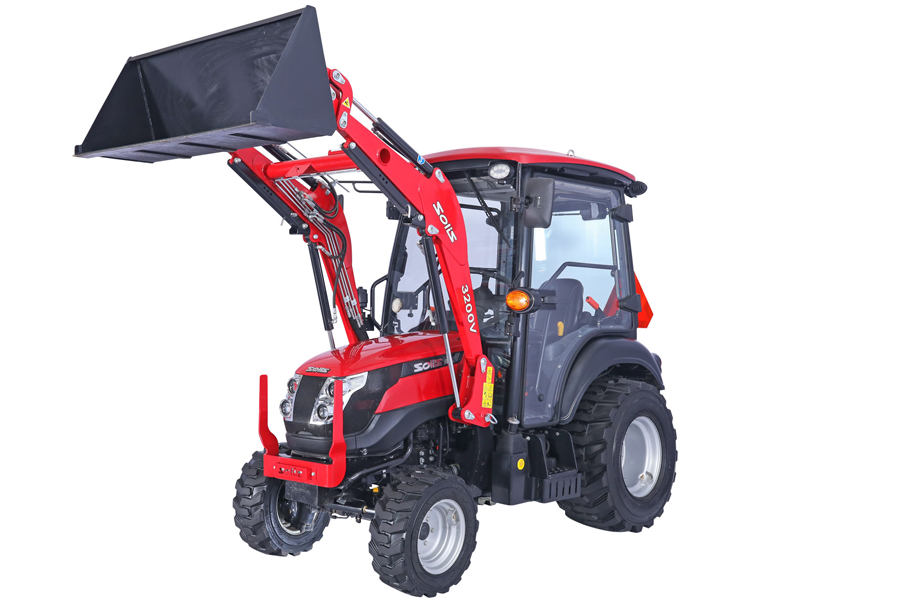

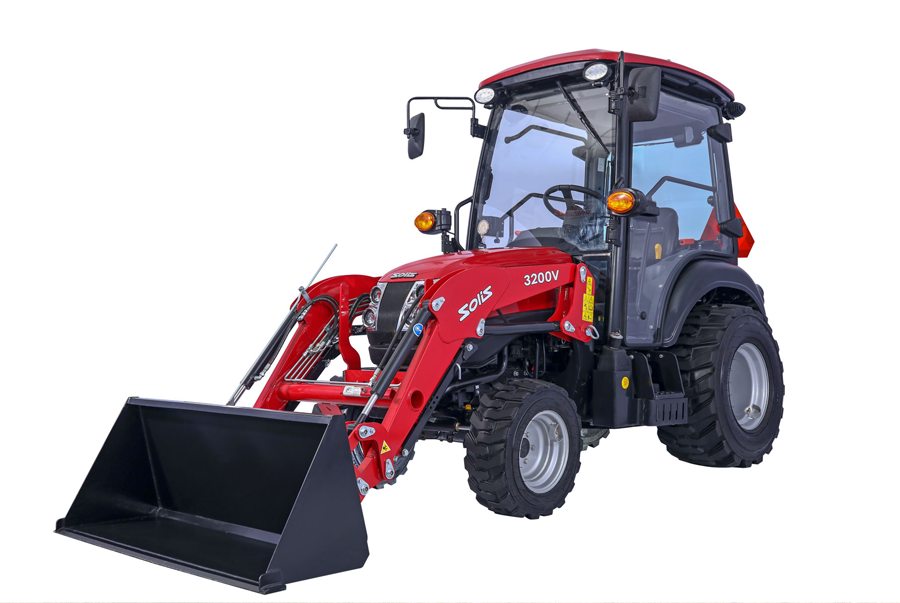

Loader Type	Front End Loader
Lift Capacity	1,411 lbs
Self-Leveling	Yes
Model	3200V
Max Lifting Height	85
Clearance with Attachment Dump	58
Reach at Max Height	17
Reach at Bucket on Ground	56
Max Dump Angle	45
Attachment Rollback Angle	43
Digging Depth Below Grade	5.9
Breakout Force at Pivot Point	1146
Bucket Width	60

Fuel Capacity	7 gal
Warranty	3-Year Full / 7-Year Powertrain
Differential Locks	Standard
Type	Oil Immersed Brakes
Type of Actuation	Mechanical, Foot Operated
