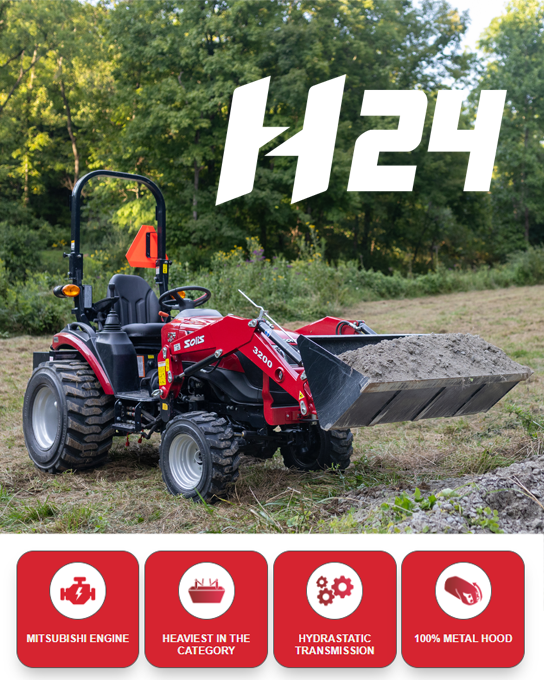

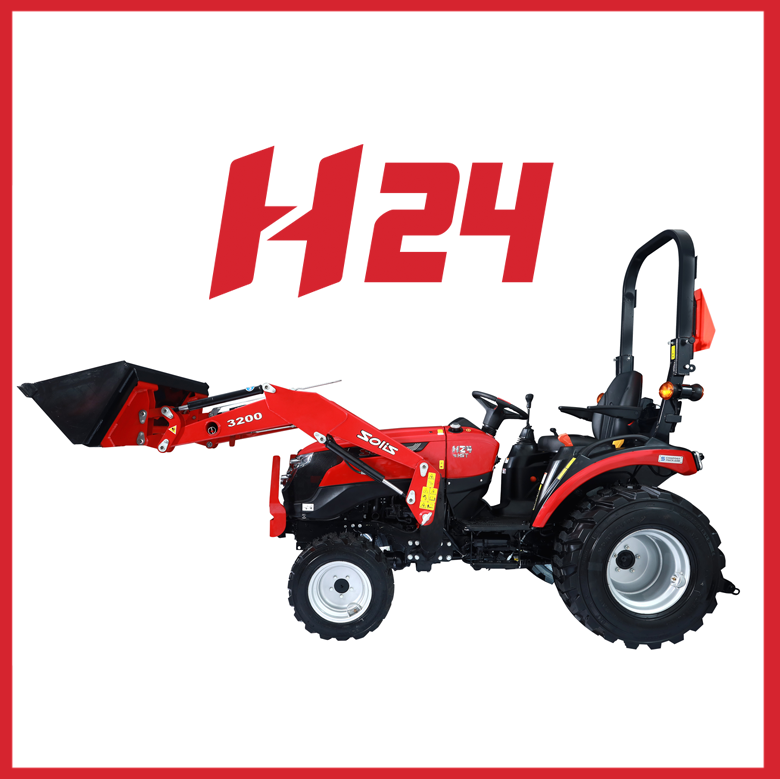

H24 HYDROSTATIC

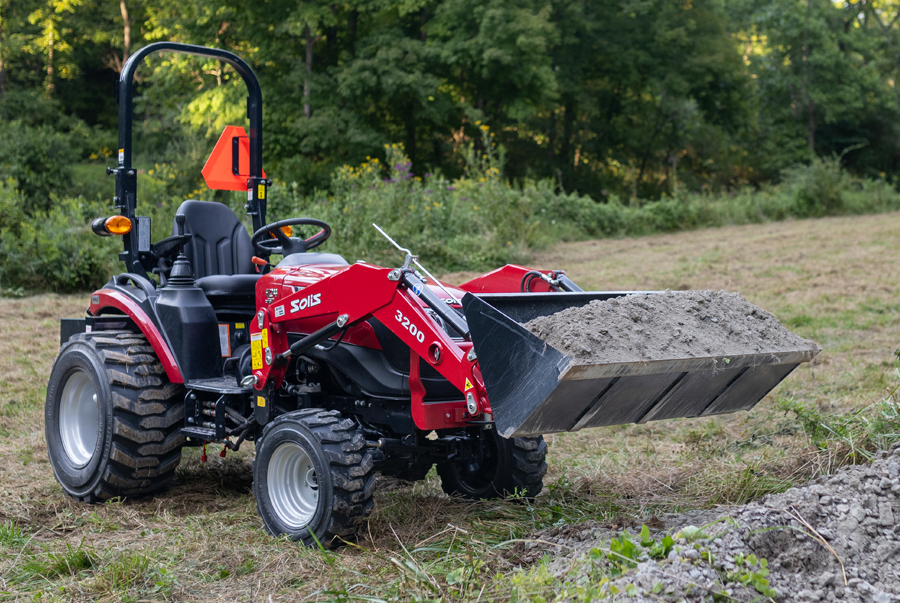

The H24 is a nimble 24-horsepower compact tractor built for dependable, everyday utility around the farm or property. Its simple, robust drivetrain and compact footprint make it easy to maneuver in tight spaces and straightforward to service.

The H24 pairs reliable PTO and hydraulic support with broad compatibility for loaders, mid-mount mowers, and rear implements. Designed for owners who value rugged performance and low ownership costs, the H24 delivers practical power without unnecessary complexity.

MSRP (LOADER INCLUDED)

$---

DOWNLOAD BROCHURE

H24 BROCHURE

BUILD A PACKAGE

H24
HYDROSTATIC

The H24 is a straightforward, 24-horsepower compact tractor built for dependable everyday work—mowing, material handling, light tilling, and trailer chores. With a simple, rugged drivetrain and manual transmission, it prioritizes mechanical reliability and easy serviceability over complexity. Its compact footprint and responsive hydraulics make it easy to maneuver in tight spaces while supporting loaders and common rear implements. Designed for owners who want practical power, low ownership costs, and a tractor that just gets the job done, the H24 is a durable, no-frills workhorse.

24-hp compact tractor with a reliable manual transmission for straightforward operation.

Durable PTO and hydraulic system compatible with loaders, mid-mount mowers, and rear implements.

Compact footprint and tight turning radius for easy maneuvering in confined areas.

Easy service access and low-maintenance design to minimize ownership costs.

TECHNICAL SPECIFICATIONS

Engine	Mitsubishi
Engine Type	3-Cylinder, Diesel
Horsepower	24 HP
Aspiration	Natural
Cubic Capacity	80.42
Rated RPM	2500
Torque	76.3 Nm@2000

Gearbox	HST 2 Range
Forward/Reverse	Twin Touch Pedals
PTO	540 RPM @2451
PTO Actuation	Button Operated
Steering	Power Steering
Drive	4WD

3 Point Linkage	CAT1N
3-Point Lift Capacity	1,323
Hydraulic Rear Remotes	1DA
Hydraulic Flow (gpm)	3.98

Weight	2513
Wheelbase	61.8
Length	113.98
Width	47.83
Height	91.53
Ground Clearance	9.44

R14 (Standard)	25×8.50-14 R14T &14-17.5 R14T
Industrial	23×8.50-12 & 33×15.5-16.5
Turf	23×8.50-12 & 33×15.5-16.5
Turf	25×8.50-14 & 13.6×16
Agriculture	6×12 & 8.3×20
Radial	6.5/80-12 & 280/70R18
Galaxy Pro	220/55R12 & 280/70R16

Loader Type	Front End Loader
Lift Capacity	1,411 lbs
Self-Leveling	Yes
Model	3200V
Max Lifting Height	85
Clearance with Attachment Dump	58
Reach at Max Height	17
Reach at Bucket on Ground	56
Max Dump Angle	45
Attachment Rollback Angle	43
Digging Depth Below Grade	5.9
Breakout Force at Pivot Point	1146
Bucket Width	60

Fuel Capacity	7 gal
Warranty	3-Year Full / 7-Year Powertrain
Differential Locks	Standard
Type	Oil Immersed Brakes
Type of Actuation	Mechanical, Foot Operated
