ATTACHMENTS
DELIVER VERSATILITY

Brochure Icon
DOWNLOAD FULL LINE OF ATTACHMENTS BROCHURE (Pages 21-23)
ATTACHMENTS BROCHURE

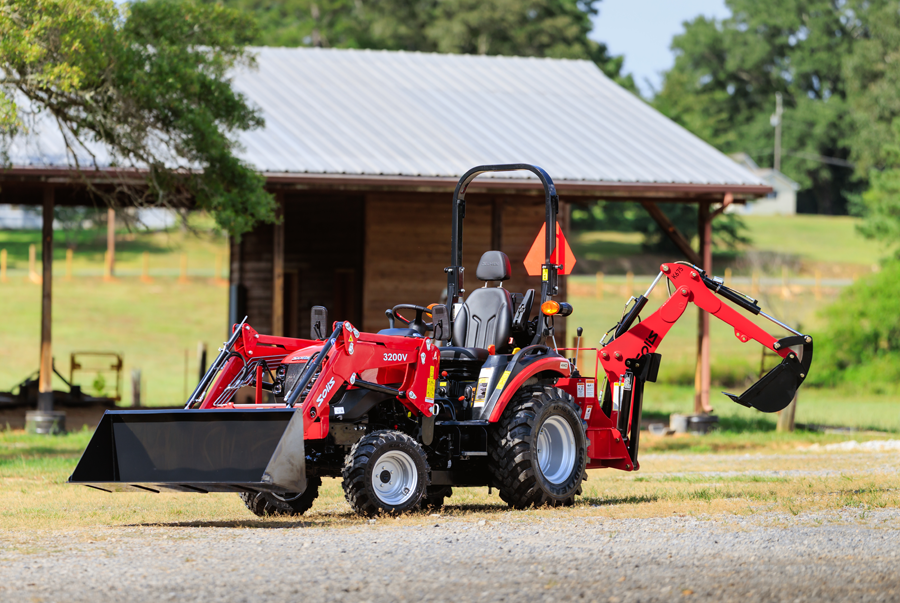

BACKHOE

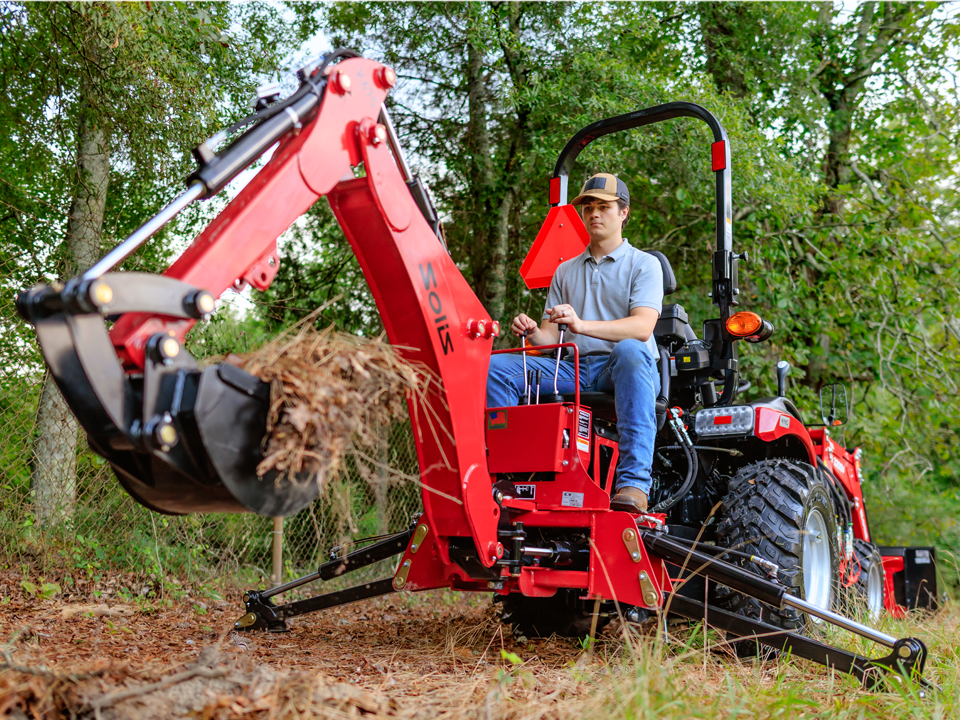

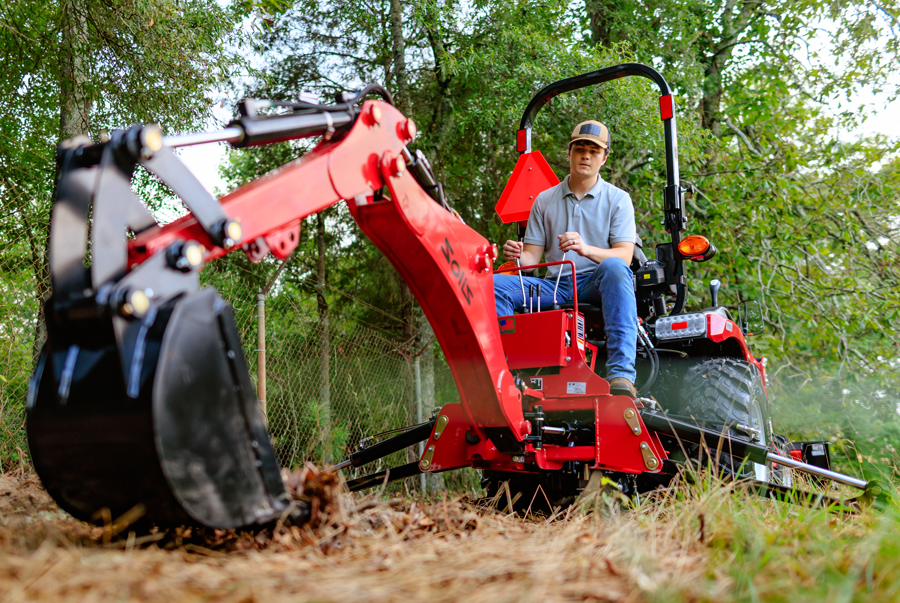

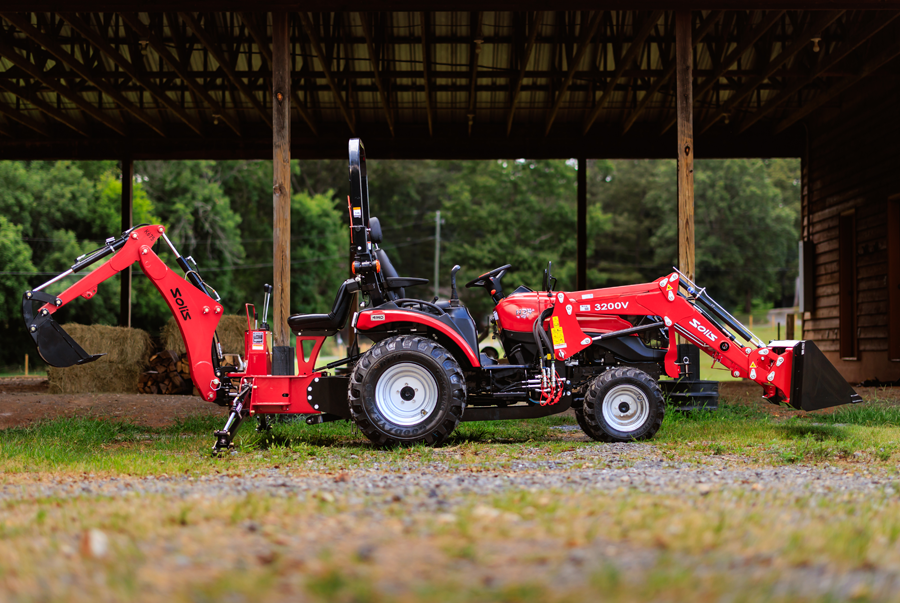

BACKHOE

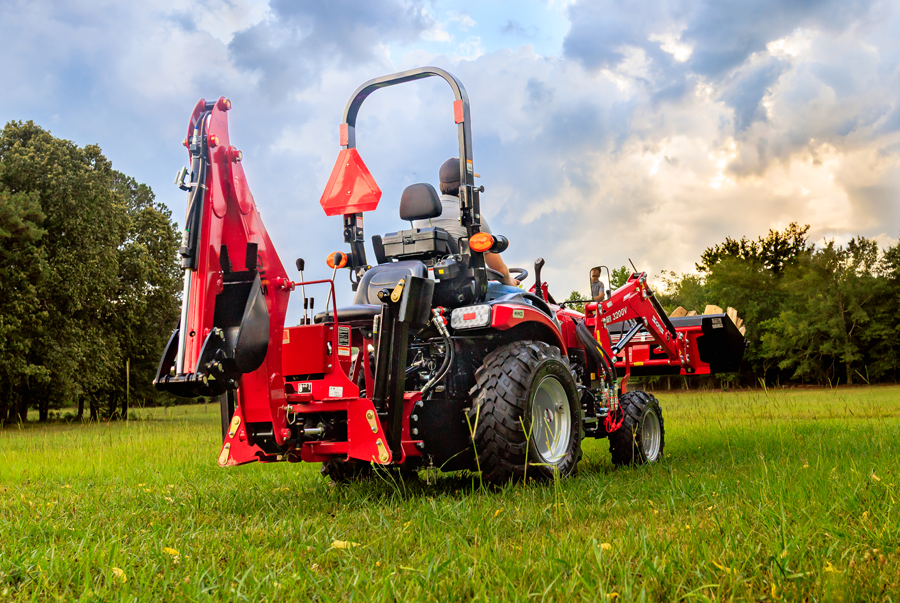

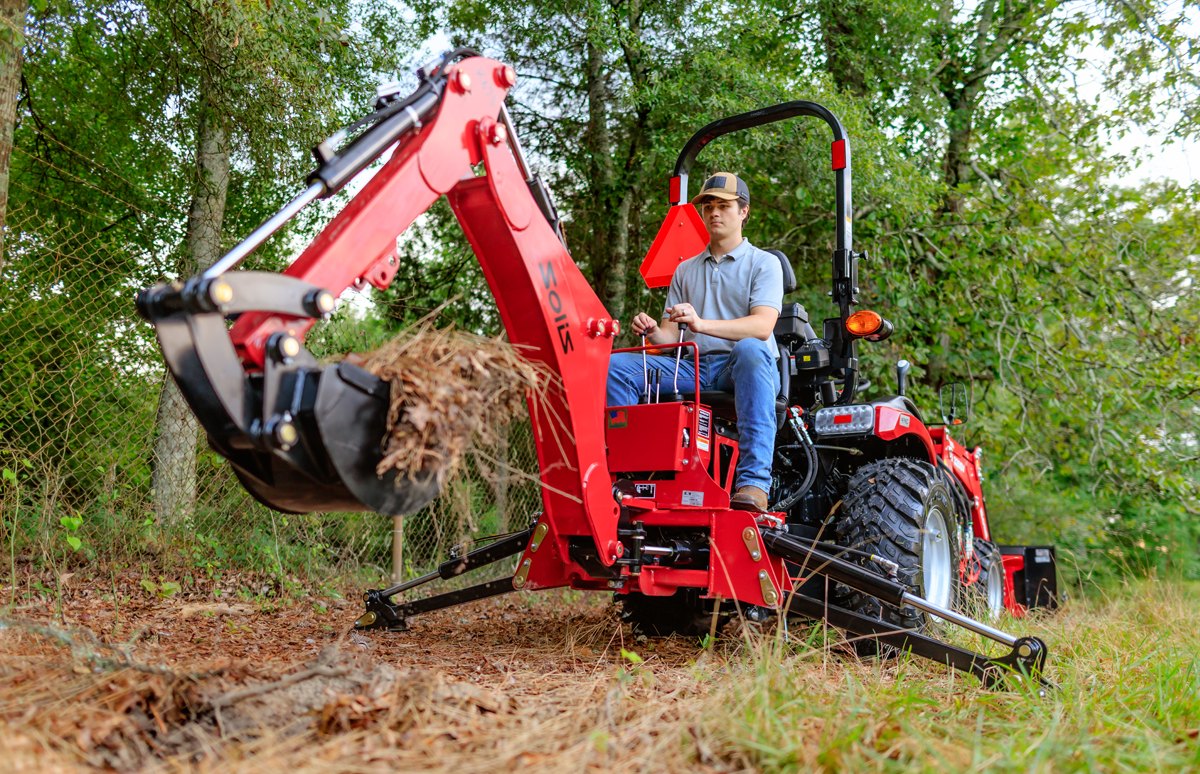

The Solis backhoe is a versatile and rugged attachment designed to handle tough digging and loading jobs with ease. Built for efficiency, it offers impressive digging depth, smooth bucket rotation, and strong cylinder forces that make light work of soil, gravel, or heavy materials. Compact yet powerful, the backhoe is engineered to match Solis tractors perfectly, giving operators reliable performance for construction, landscaping, farming, or property maintenance. With options like different bucket sizes and a standard mechanical thumb, it provides flexibility for a wide range of applications while maintaining durability and ease of use.

MSRP Icon
BACKHOE MSRP - STARTING AT

$---

Specification SLBH-195
Maximum Digging Depth (inch)76
Digging Depth (2 foot flat bottom) (A) (inch)75
Digging Depth (8 foot flat bottom) (inch)48
Swing Arc (B) (degree)150
Loading Height (Bucket at 60°) (C) (inch)65
Reach from Center Line of Swing Pivot (D) (inch)107
Transport Height (maximum) (E) (inch)71
Bucket Rotation (F) (degree)177
Loading Reach (bucket at 60°) (G) (degree)37
Undercut (I) (inch)17
Overall Operating Height - Fully Raised (M) (inch)104
Bucket Cylinder Digging Force (N)13340
Dipperstick Cylinder Digging Force (N)8990
3 Point HitchCat -1
Tractor Power (HP)20-30
Weight with Standard Bucket (lbs)826.7
Mechanical ThumbStandard
Bucket 14 inchOptional
Bucket 16 inchOptional

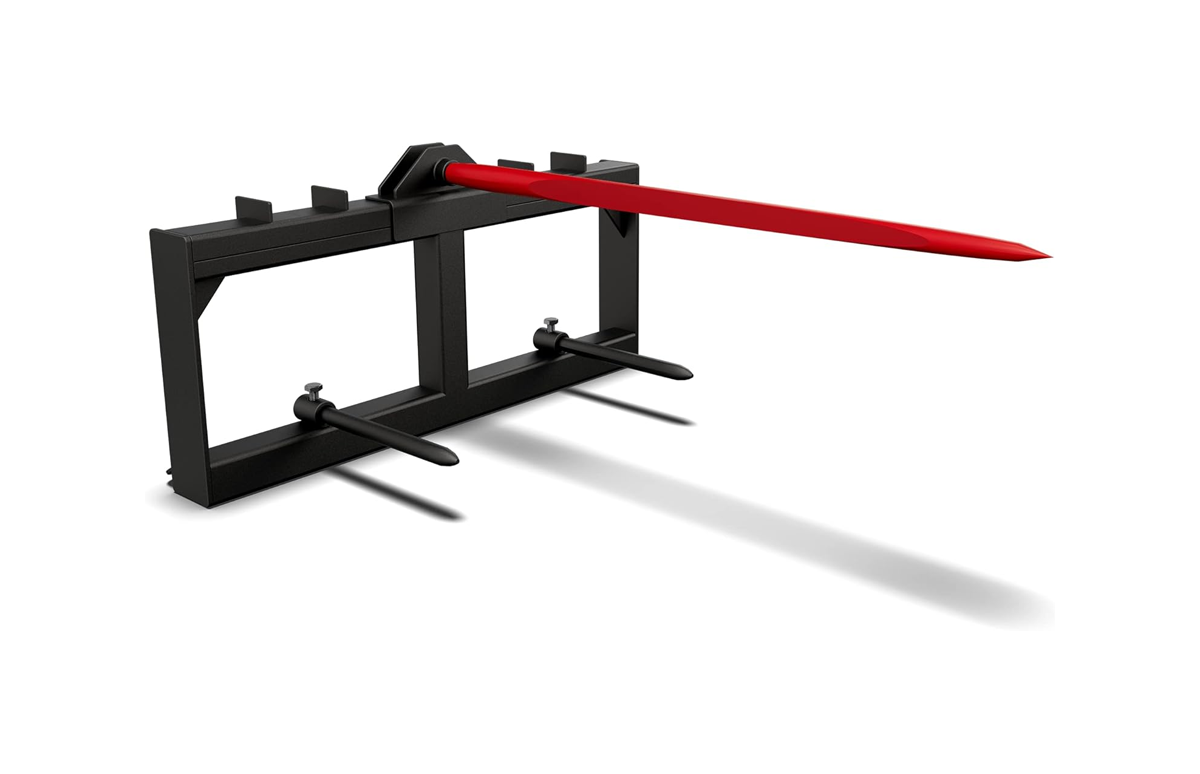

BALE SPIKE

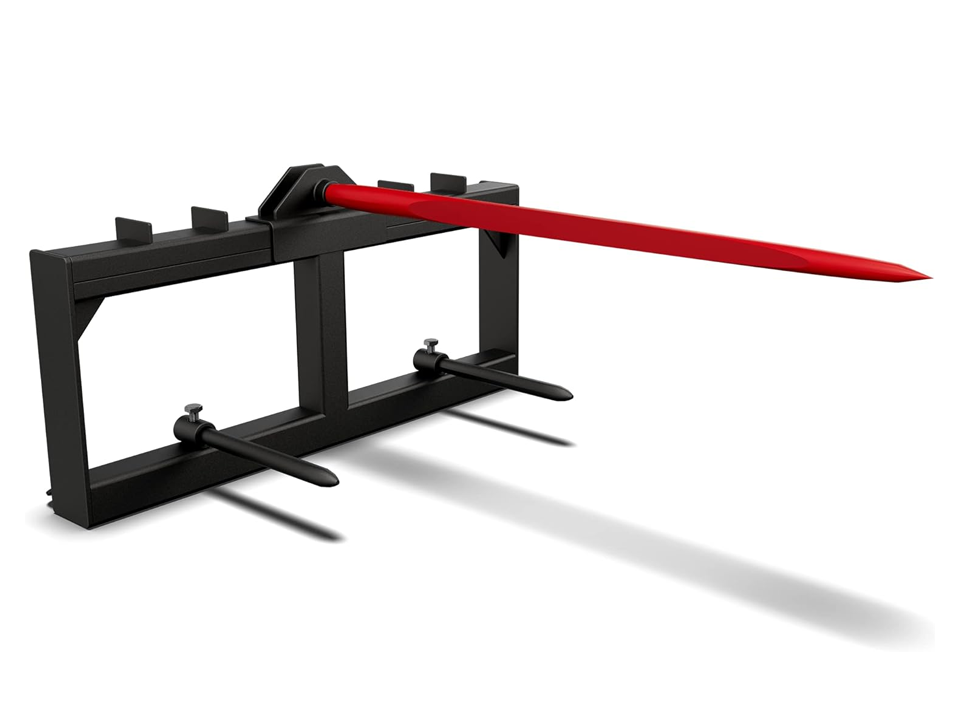

BALE SPIKE

The Solis Bale Spike is a durable and efficient attachment designed to make handling hay bales simple and reliable for operators. Built for tractors in the 15–24 HP range, it offers a strong lift capacity with well-balanced dimensions for easy maneuverability on the farm. Featuring heavy-duty spears, including a longer main spear and smaller stabilizing spears, the Bale Spike ensures secure transport and stacking of round or square bales. With its robust construction and compatibility with Solis tractors, this attachment delivers dependable performance for livestock operations, hay producers, and everyday farm work.



MSRP Icon
BALE SPIKE MSRP STARTING AT

$---

BUCKET TYPE BALE SPIKE
SERIES2000
HP Range15–24
Lift Capacity (lbs)660
Dimensions LxWxH (inches)47.5x43x25
Weight (lbs)202
Usable Spear Length (Big) (inches)43.3
Usable Spear Length (Small) (inches)27
No of Spears3

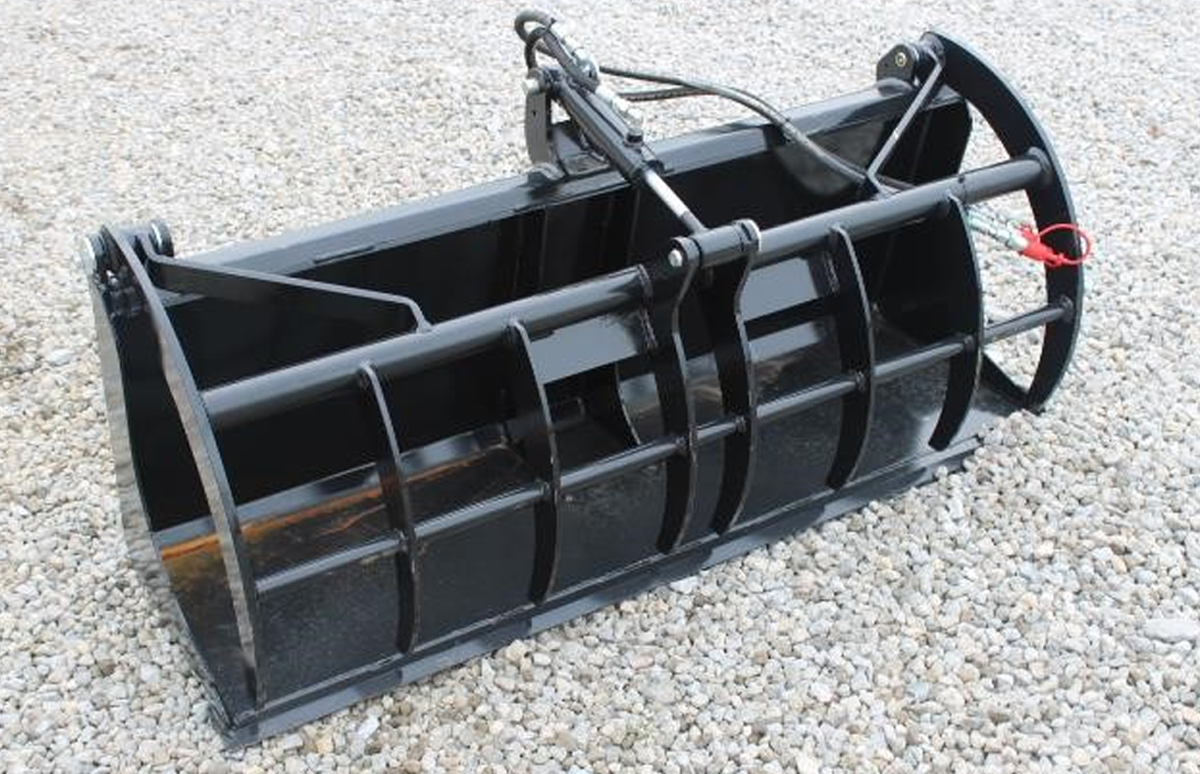

GRABBER

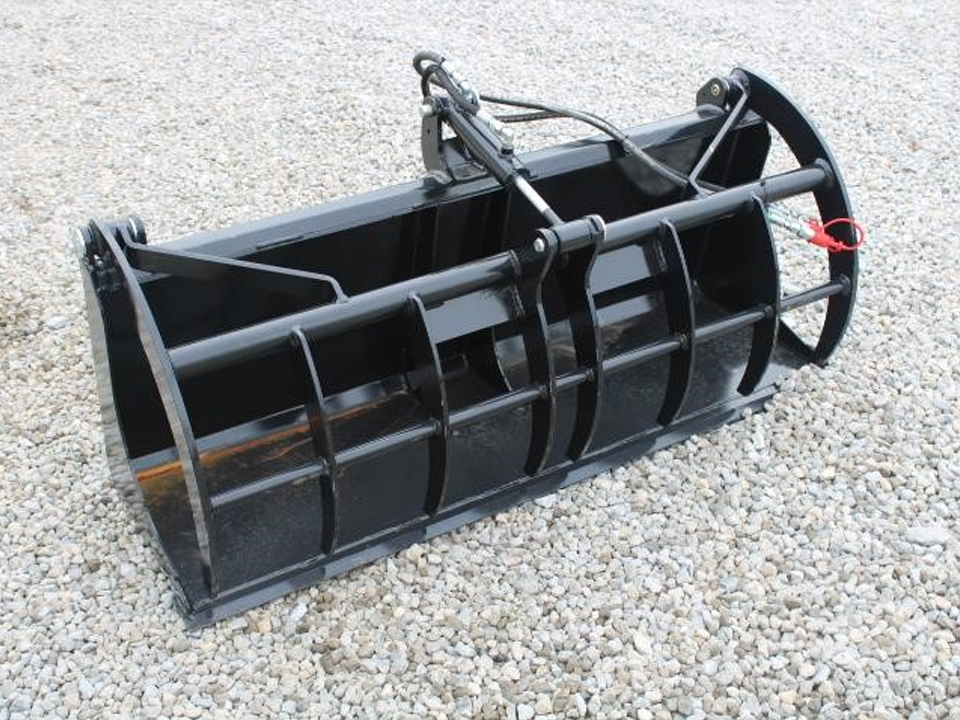

GRABBER

The Solis Grabber Bucket is a versatile attachment built to handle bulky, irregular, or loose materials with ease. Designed for tractors in the 15–24 HP range, it features a wide grapple opening and multiple heavy-duty tines that securely clamp down on loads such as brush, hay, or debris. Its strong hydraulic cylinder ensures smooth, reliable operation, while the durable bucket construction adds both strength and stability. Compact yet powerful, the Grabber Bucket enhances efficiency in material handling tasks, making it an excellent choice for farmers, landscapers, and property owners who need a dependable tool for loading, moving, and clearing.

MSRP Icon
GRABBER MSRP STARTING AT

$---

BUCKET TYPE GRABBER BUCKET SKID STEER HITCH 1.35M
SERIES2000
HP Range15–24
Struck Capacity (cu yd)0.16
Heaped Capacity (cu yd)0.22
Dimensions LxWxH (inches)53.6x21x24.8
Weight (lbs)279
Grabber Opening Height (inches)23.6
Number of Tines (Non Removable)8
Tine Thickness (inches)0.3
Number of Hydraulic Cylinder1
Maximum Hydraulic Pressure (psi)2610
GRAPPLE

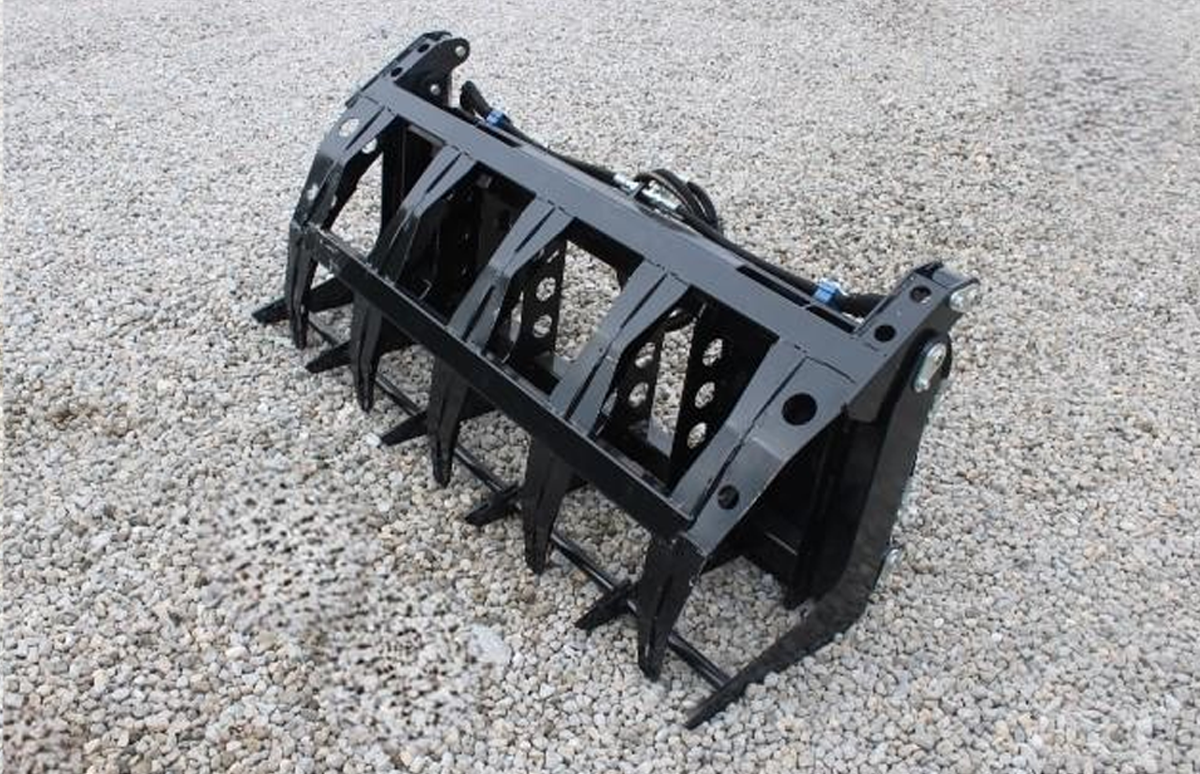

GRAPPLE

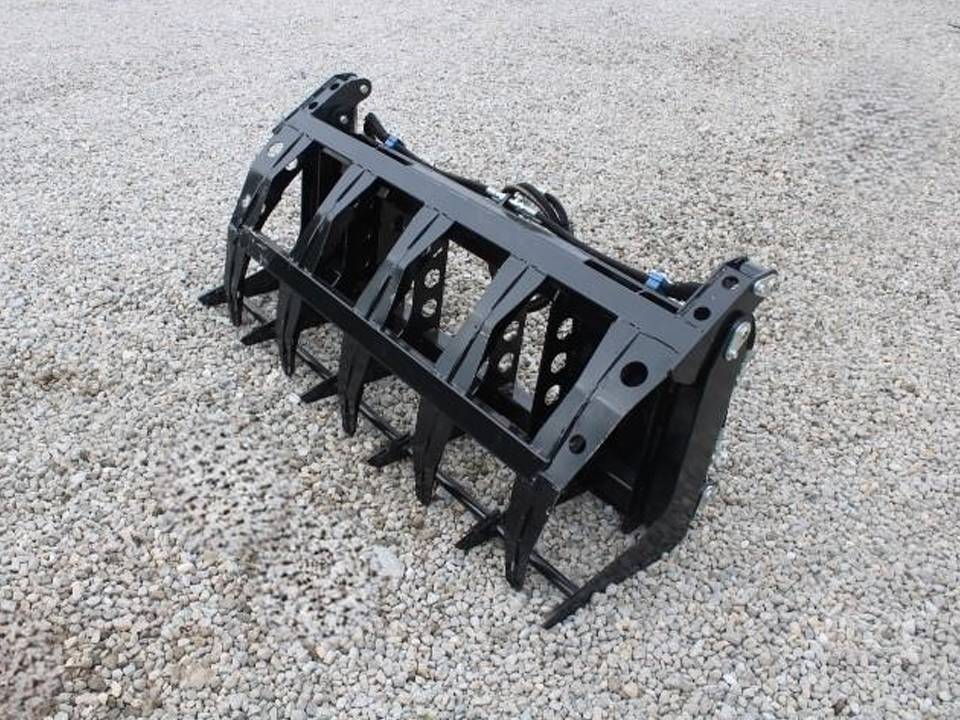

The Solis Grapple Bucket is engineered for strength and versatility, making it ideal for handling logs, brush, hay, and other bulky materials. Designed for tractors in the 15–24 HP range, it combines a wide grapple opening with heavy-duty tines and dual hydraulic cylinders to provide a firm, secure grip on even the toughest loads. Its durable build and optimized tine spacing allow for efficient loading, moving, and clearing of debris while minimizing spillage. Compact yet powerful, the Solis Grapple Bucket is a reliable tool for farmers, ranchers, and property owners who need dependable performance for everyday material handling and cleanup tasks.

MSRP Icon
GRAPPLE MSRP STARTING AT

$---

BUCKET TYPE GRAPPLE BUCKET 1.4 M SKID STEER HITCH
SERIES2000
HP Range15–24
Struck Capacity (cu yd)0.13
Heaped Capacity (cu yd)0.22
Dimensions LxWxH (inches)56x20x25
Weight (lbs)296
Grapple Opening Height (inches)34.8
Number of Tines (non removable)5
Tine Thickness (inches)0.2
Number of Hydraulic Cylinder2
Maximum Hydraulic Pressure (psi)2610

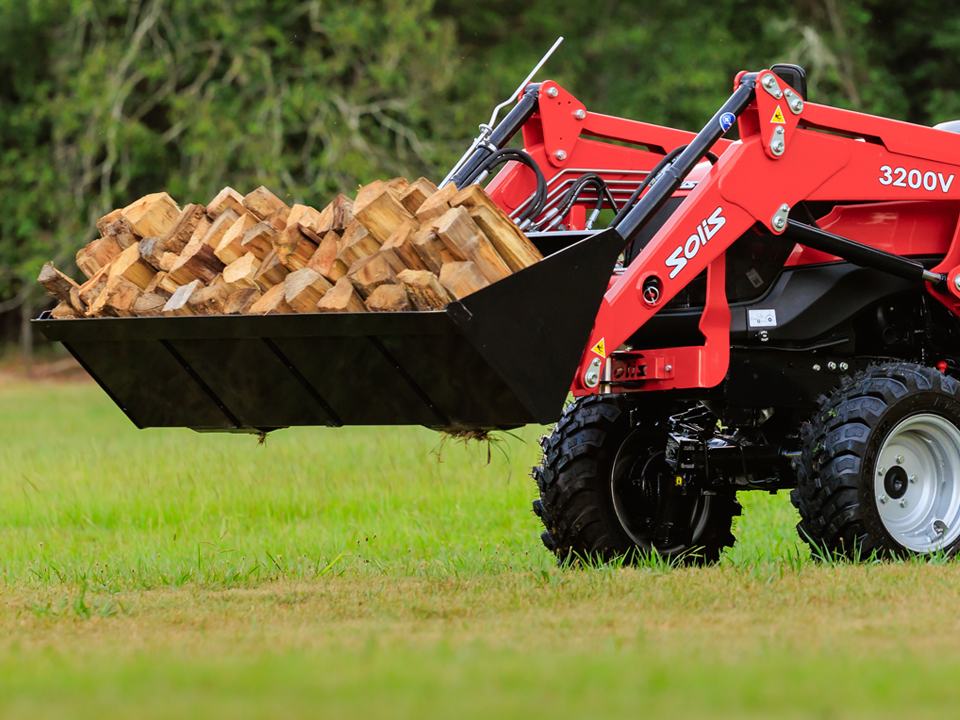

LOADER

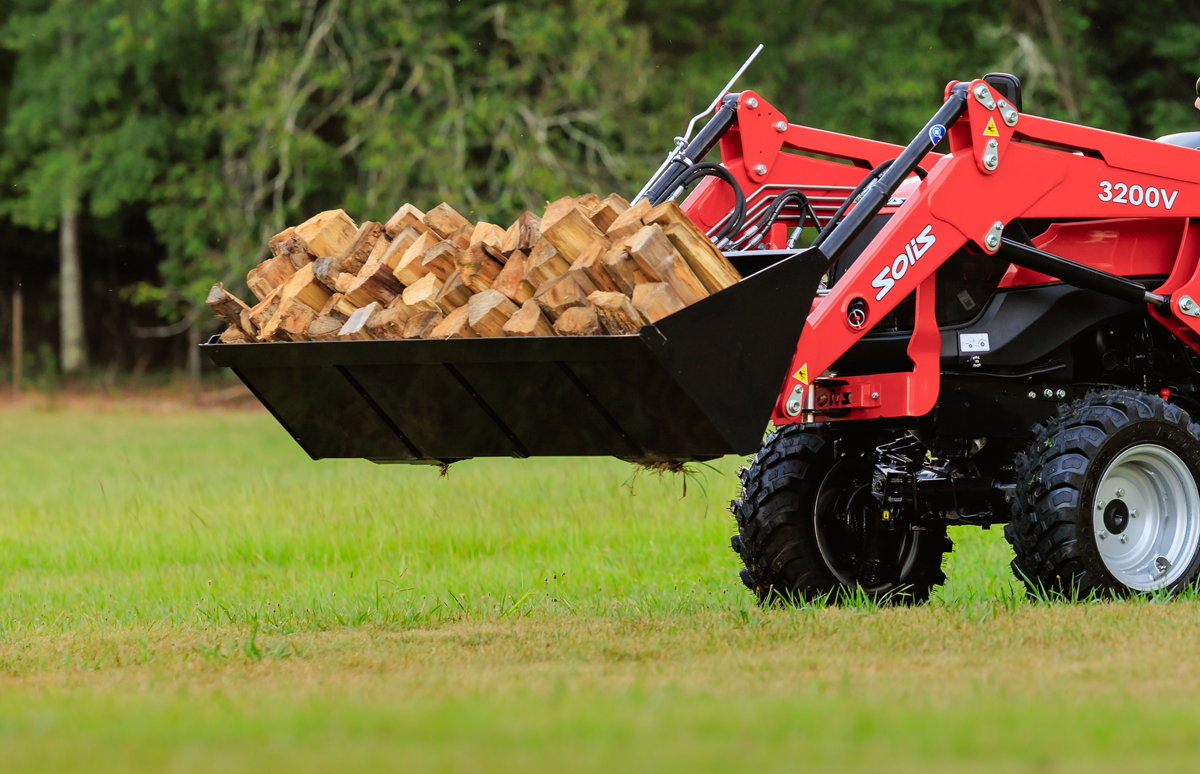

LOADER - SELF-LEVELING SSQA

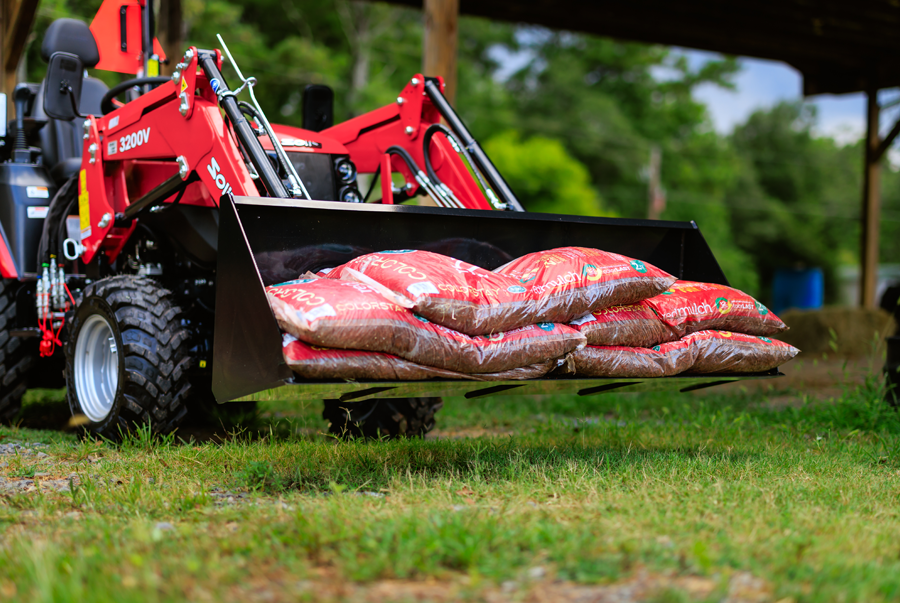

The Solis self-leveling skid steer quick-attach loader is designed to simplify loading, lifting, and material handling tasks with smooth, automatic leveling action. As the loader arms raise or lower, the bucket stays level without needing manual adjustment, which helps prevent spillage and ensures more precise placement of materials. Its quick-attach interface makes swapping between implements fast and seamless, increasing productivity. Built with heavy steel construction and optimized for Solis tractors in the mid-range HP class, it combines reliability, ease of use, and maximum versatility—ideal for jobs involving dirt, gravel, feed, or general purpose farm and property work.

MSRP Icon
LOADER MSRP

$--- INCLUDED WITH ALL TRACTORS

BUCKET MSRP STARTING AT

1.2M $600, 1.5M $---



Loader Model SB24
NSL/MSL NSL/MSL
Max Lifting Height at Pivot Point (in)85
Clearance with Attachment Dump (in)58
Reach at Maximum Height (in)17
Reach at Bucket on Ground (in)56
Max. Dump Angle (deg.)45
Attachment Rollback Angle (deg.)43
Digging Depth Below Grade (in)5.9
Breakout Force at Pivot Point (Dig Position) (lbs)1146
Bucket Width (in)52
Lifting Capacity to Full Height at Pivot Point (lbs)1411
3rd functionOptional
BUCKET TYPE STD BUCKET 1.5M SKIDSTEER HITCH STD BUCKET 1.35M
SERIES20002000
HP Range15–2415–24
Struck Capacity (cu yd)0.220.20
Heaped Capacity (cu yd)0.260.22
Dimensions LxWxH (inches)61x19x2055x20.1x20
Weight (lbs)182.6150.7
Working Depth (inches)4.24.2
Side Wall Thickness (inches)0.10.2
Cutting Edge Thickness (inches)0.50.5

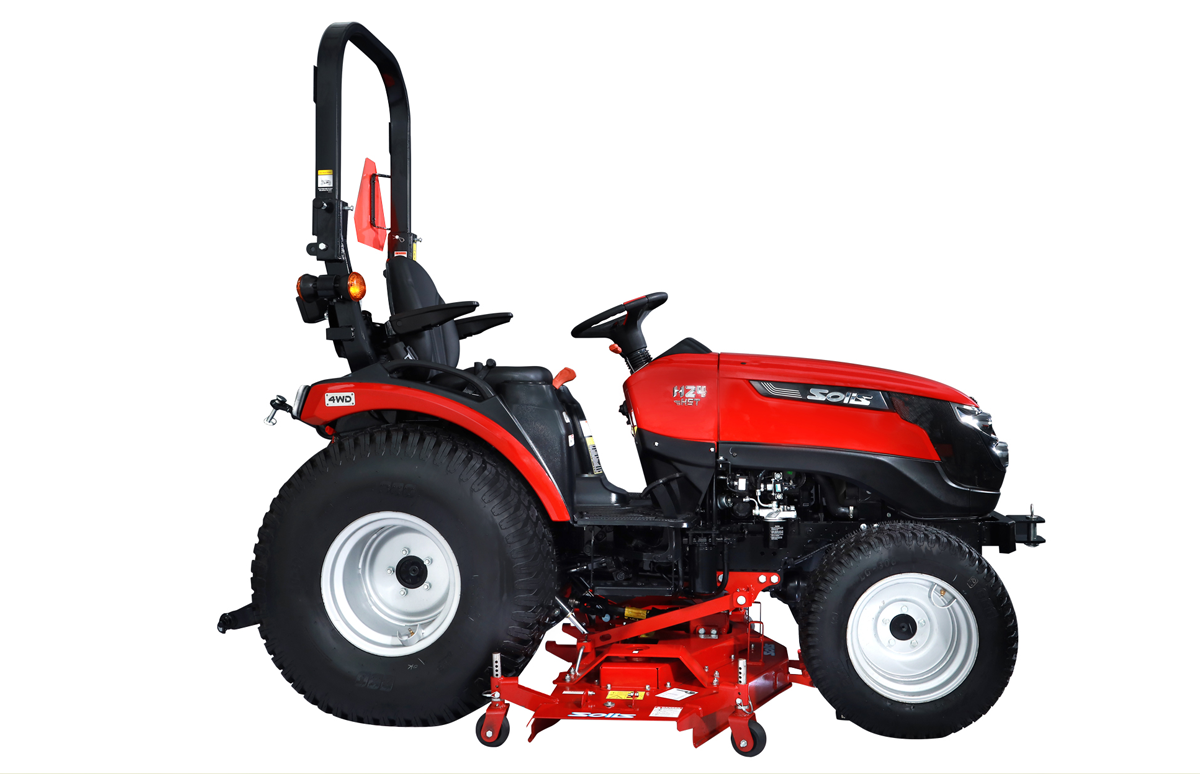

MID-MOUNT MOWER

MID-MOUNT MOWER

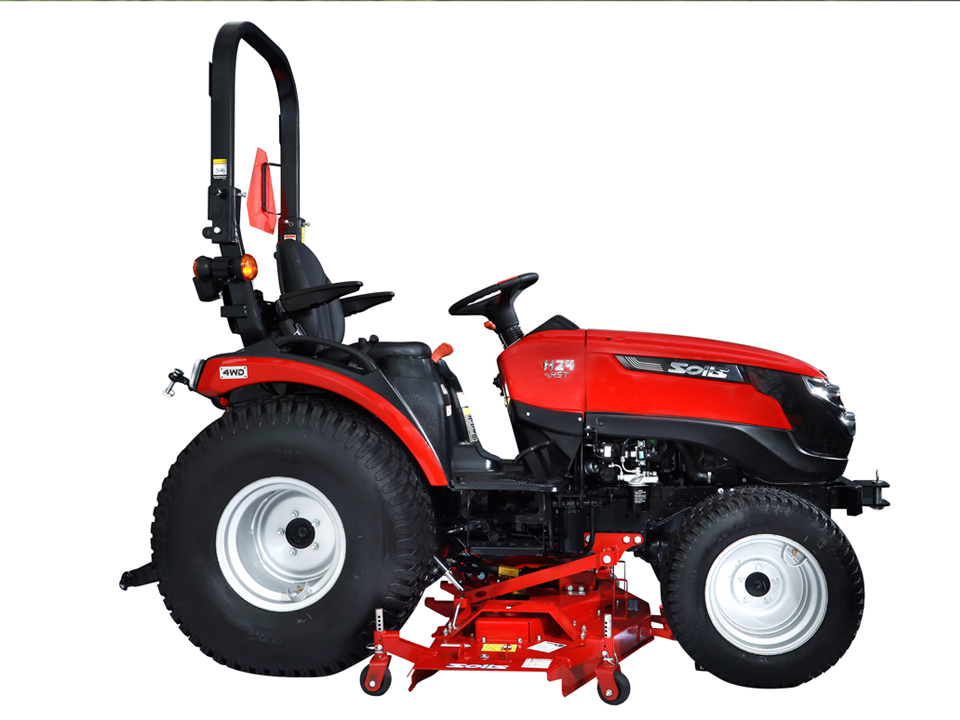

The Solis mid-mount mower is engineered for efficient mowing performance right under the tractor frame, giving you excellent maneuverability and visibility. It typically uses a parallel linkage mounting system that keeps the mower deck on a consistent plane, letting you maintain even cutting heights across uneven ground. With a side-discharge configuration, the mower moves clippings out of the way cleanly and avoids clogging. Constructed with a robust deck and durable components, it’s well suited for cutting in fields, pastures, and around obstacles. The Solis mid-mount mower balances rugged construction with practical ease of use to help you keep property and fields well-manicured.

MSRP Icon
MID-MOUNT MOWER MSRP STARTING AT

$---

Model Name SLMM-60
No. of blades3
Mounting methodParallel Linkage
Lift link typeLower link lift
DischargeSide Discharge
Cutting width (inch)60
Cutting height (inch)1 to 5
Overall Length (inch)39.3
Overall Height (inch)13.4
Overall Width (inch)61
Weight (lbs)364
BeltSingle C type Belt
Blade Spindle speed (rpm)2717 RPM
Blade tip speed (fpm)14713
Blade length (inch)20.7
Number of antiscalp rollers4+1
Mower deck thickness (inch)0.15
Mower deck height (inch)4
Transport Height (inch)5
Tractor HP required20–26

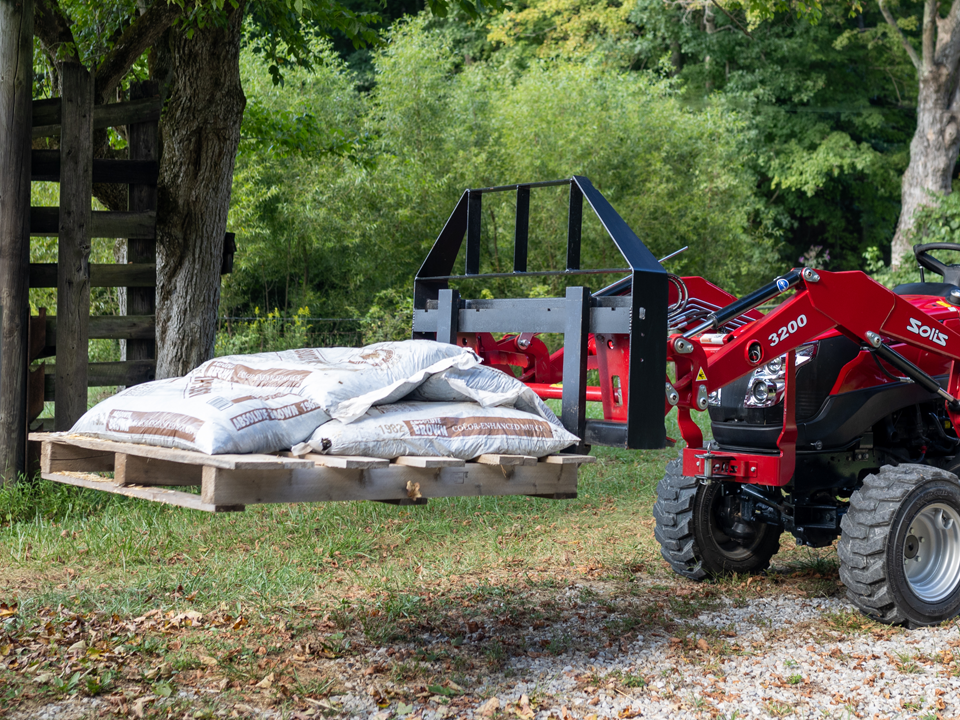

PALLET FORK

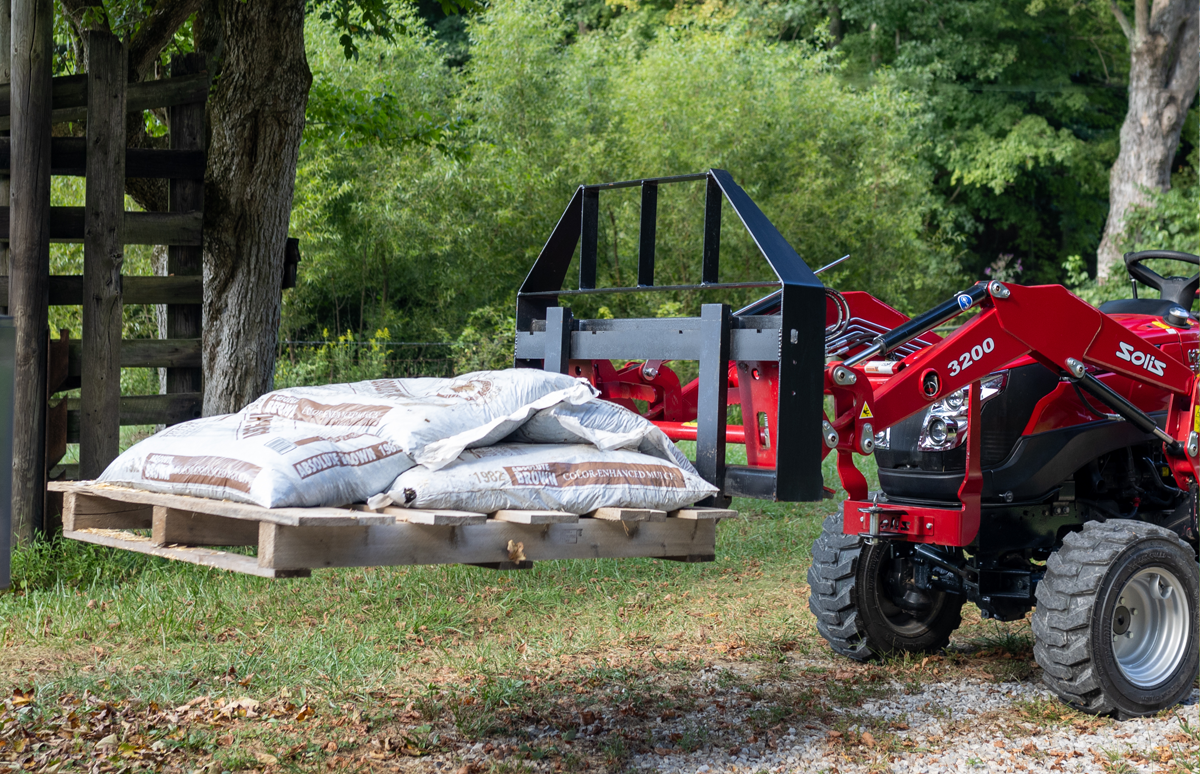

PALLET FORK

The Solis pallet fork attachment is a versatile implement built to transform your tractor into a material handling machine. Designed with durability and precision in mind, it features stout steel tines, adjustable spacing, and rigid frame construction—ideal for lifting and transporting heavy loads like pallets, bales, feed, or building supplies. The quick-attach system lets you install and remove the forks swiftly, and its compatibility with 15–24 HP tractors ensures it offers rugged performance without overburdening your machine. Whether you’re feeding livestock, stacking materials, or working around the farm yard, the Solis pallet fork gives you a simple, powerful tool to move heavy items safely and efficiently.

MSRP Icon
PALLET FORK MSRP STARTING AT

$---

BUCKET TYPE PALLET FORK SKID STEER HITCH
SERIES2000
HP Range15–24
Lift Capacity (lbs)660
Dimensions LxWxH (inches)45x30.5x25.7
Weight (lbs)200
Tine Thickness (inches)0.2
Tine Length (inches)28
Tine Width (inches)4
Tine Height (inches)2
4 IN 1 BUCKET

4 IN 1 BUCKET

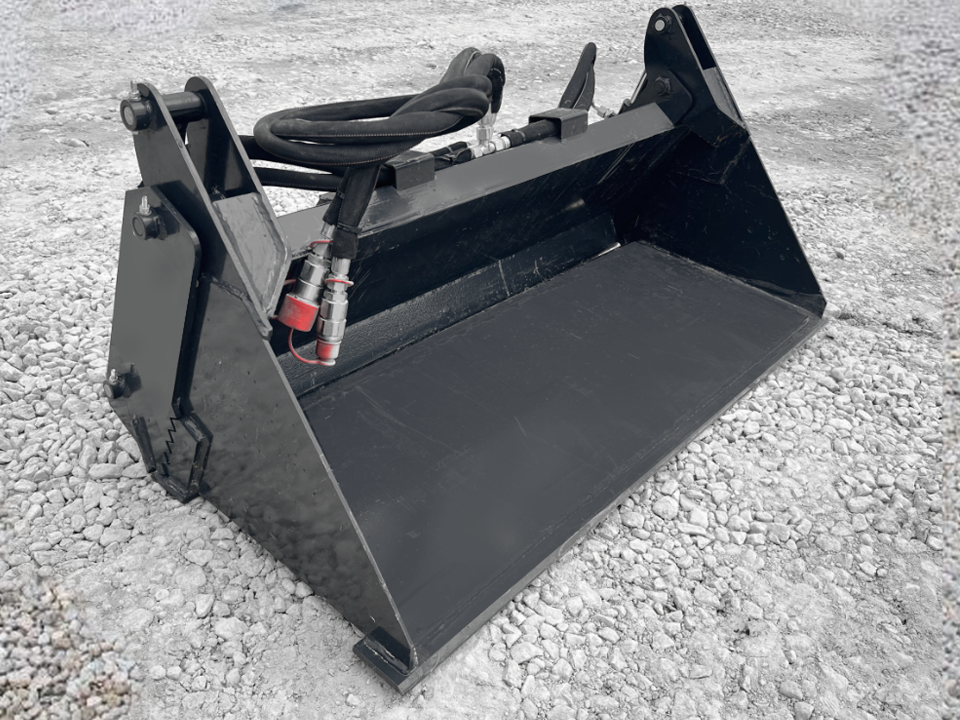

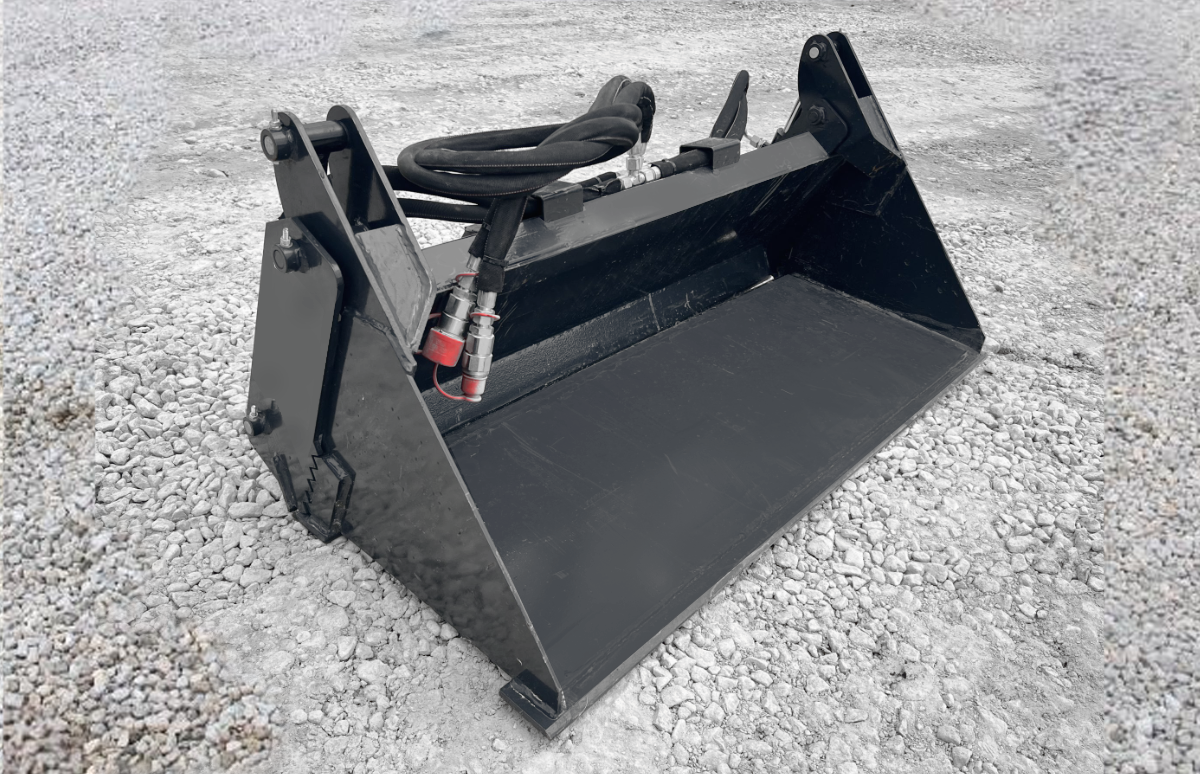

The Solis 4-in-1 bucket is a highly versatile loader attachment that combines functions of a standard bucket, grapple, dozer blade, and clamshell in one for greater utility. Operators can tilt, scoop, clamp, and even dig—making it ideal for jobs that require flexibility without changing out implements. With a strong hydraulic actuation system, it offers smooth control over opening and closing actions, ensuring optimal grip and dump performance. Built with heavy-duty steel and optimized for the 15-24 HP class of tractors, the 4-in-1 bucket helps you streamline workflow: use it for grading, backfilling, grabbing brush, or lifting loose materials. Its adaptable design reduces downtime and maximizes the value you get out of your loader.

MSRP Icon
4 IN 1 BUCKET MSRP STARTING AT

$---

BUCKET TYPE 4 IN 1 BUCKET 1.5M SKID STEER HITCH
SERIES2000
HP Range15–24
Struck Capacity (cu yd)0.24
Heaped Capacity (cu yd)0.27
Dimensions LxWxH (inches)60x22.2x21.7
Weight (lbs)277
Maximum Hydraulic Pressure (psi)2610
Number of Hydraulic Cylinder2
Clamshell Opening Angle (degree)90
SNOW PUSHER

SNOW PUSHER SPX60

The SPX60 Snow Pusher is a rugged, efficient snow-removal attachment built to pair perfectly with Solis Tractors. Designed for durability and performance, the SPX60 allows operators to quickly push and clear large volumes of snow from driveways, lots, and farm lanes with minimal passes. Its wide 60-inch clearing path, heavy-duty construction, and smooth push action make it an ideal solution for winter maintenance—helping Solis tractor owners work faster, safer, and more efficiently when winter weather hits.

MSRP Icon
SNOW PUSHER MSRP STARTING AT

$---

BUCKET TYPE SNOW PUSHER
SERIESSPX60
HP Range15–24
Cutting Edge Reversible
Dimensions LxWxH (inches)60 in , Height 23.2, Depth 24.6
Weight (lbs)225
