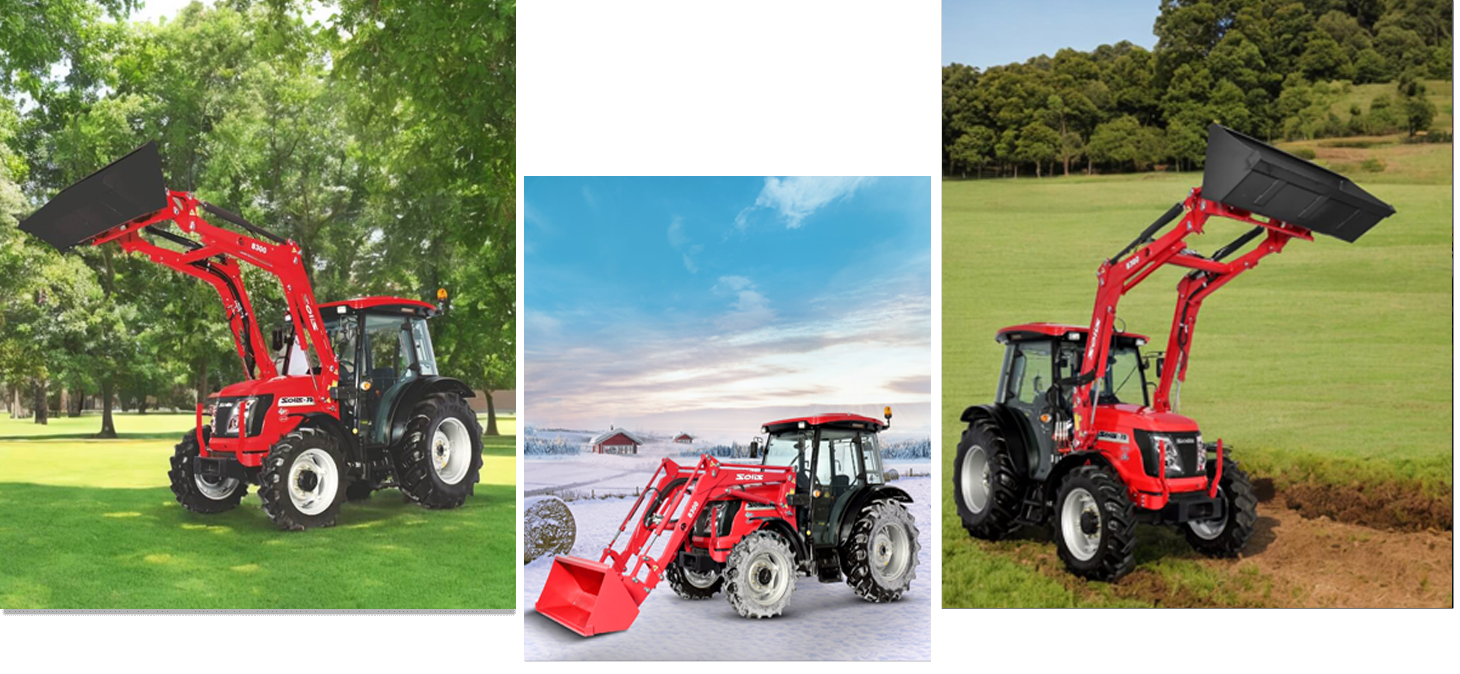

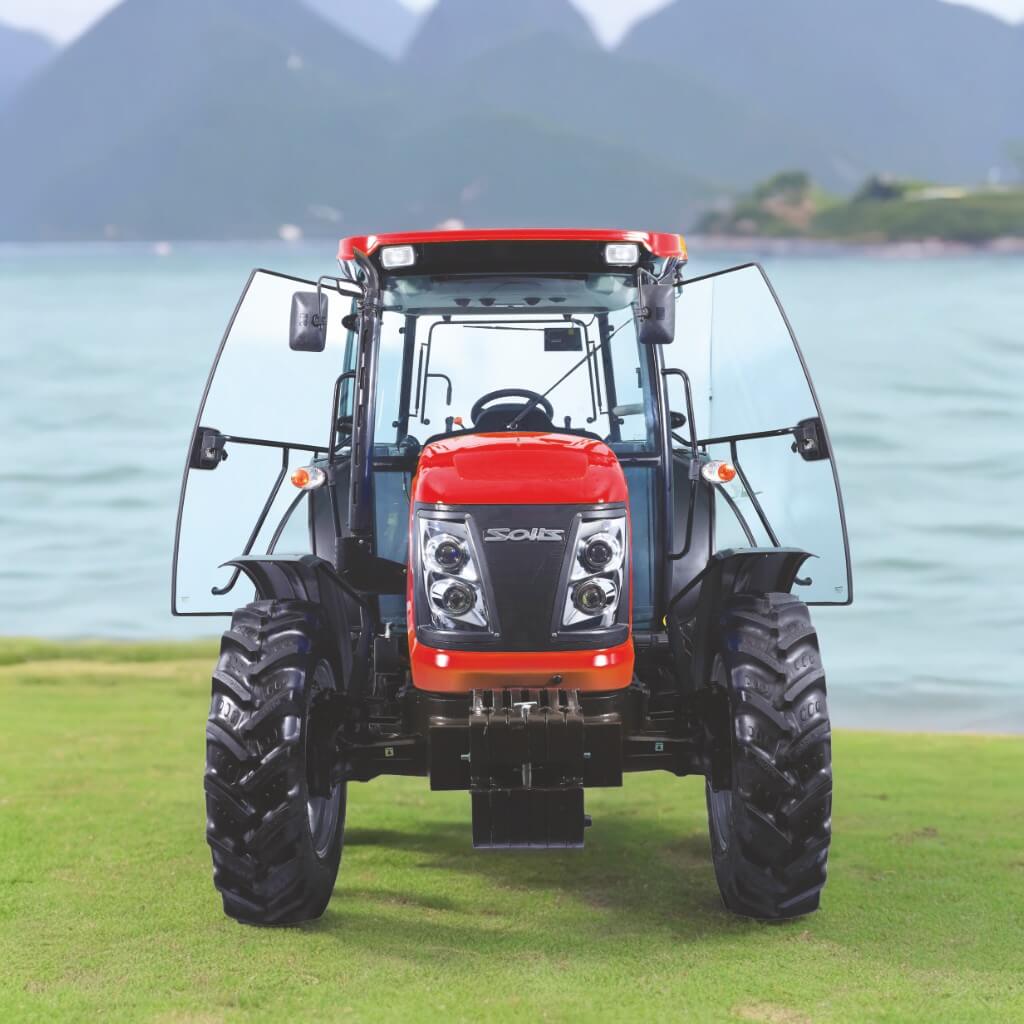

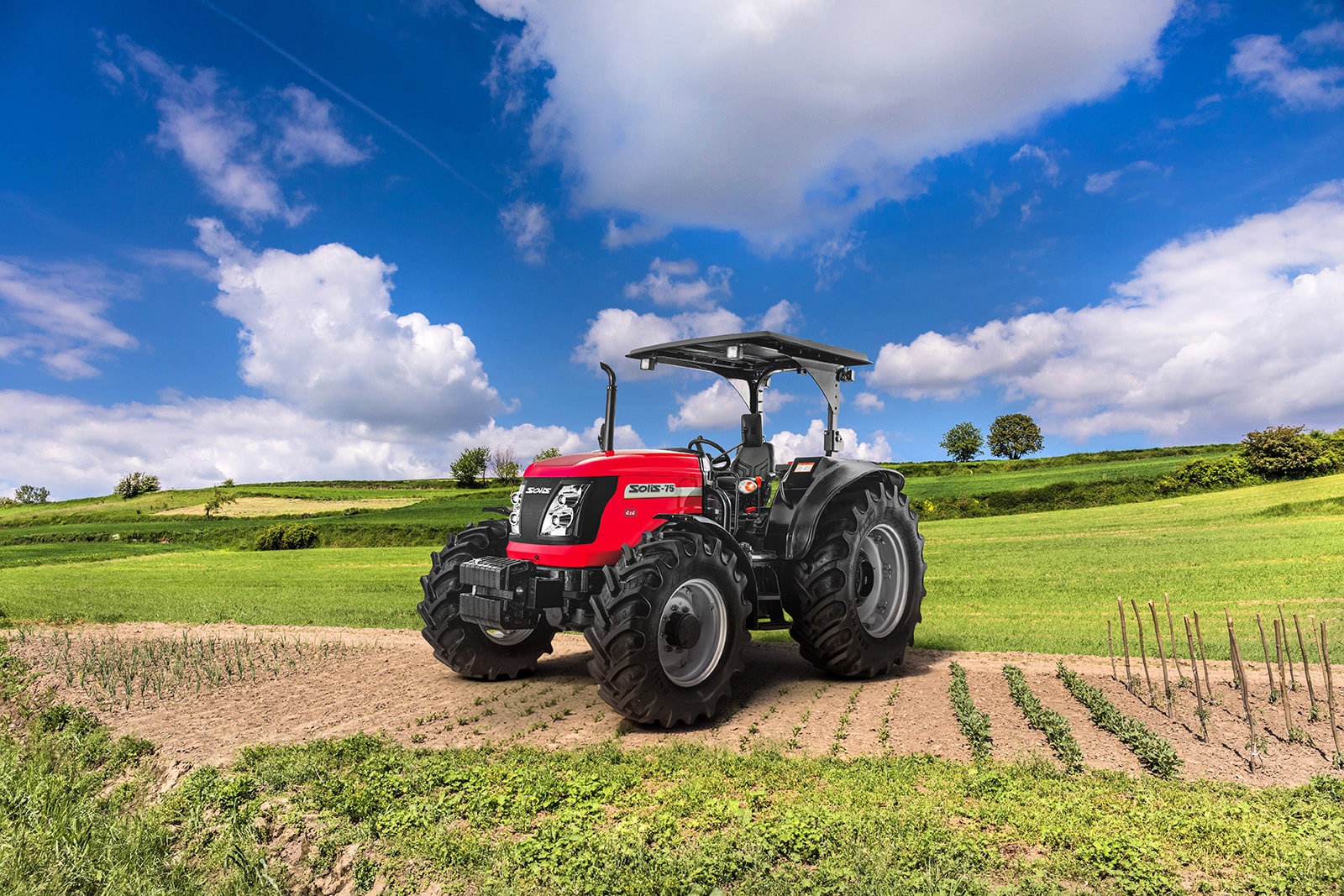

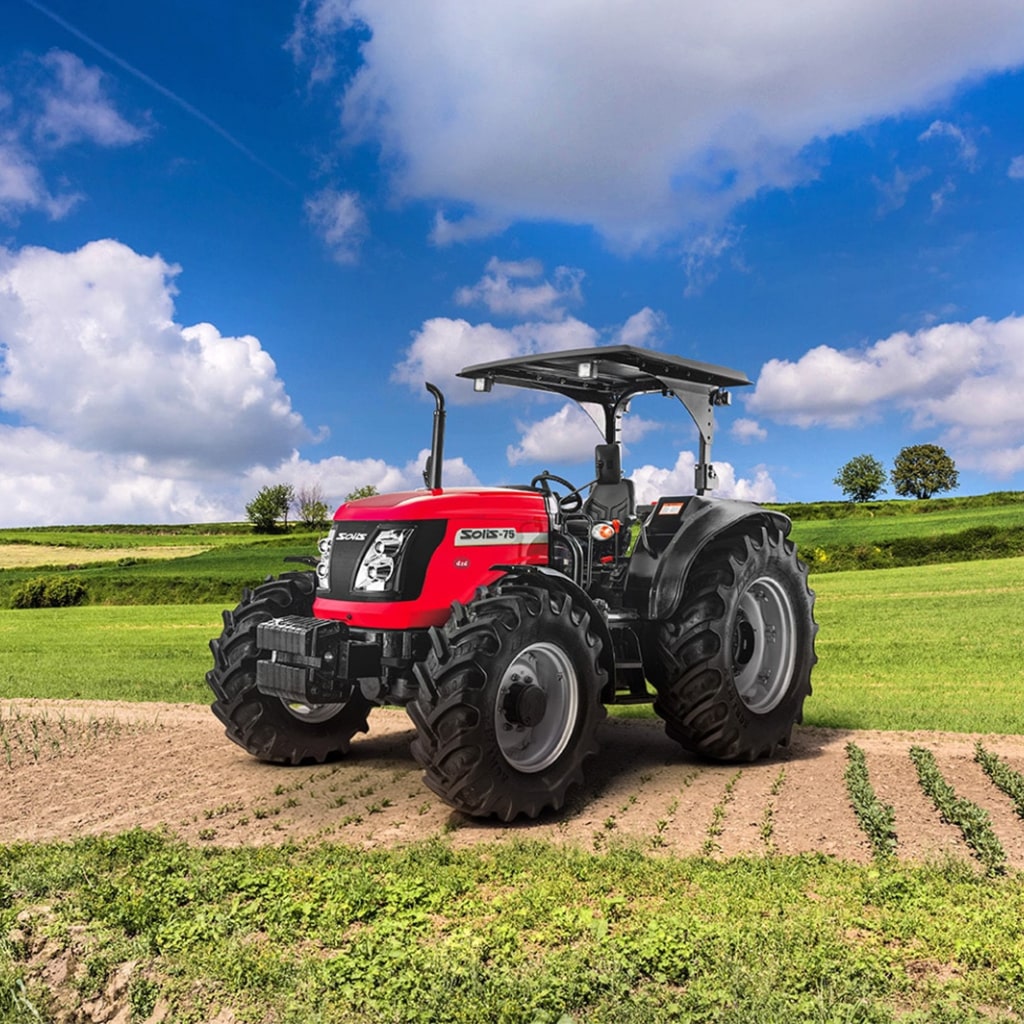

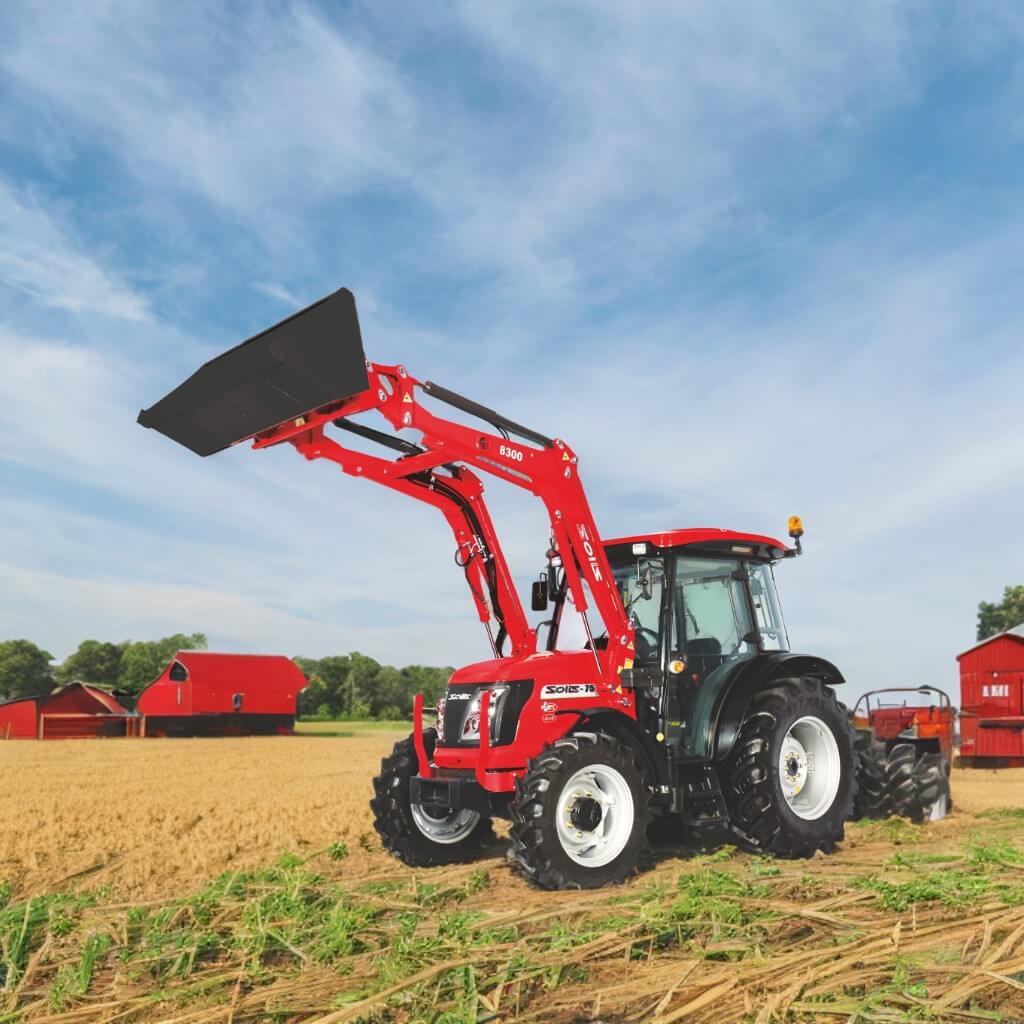

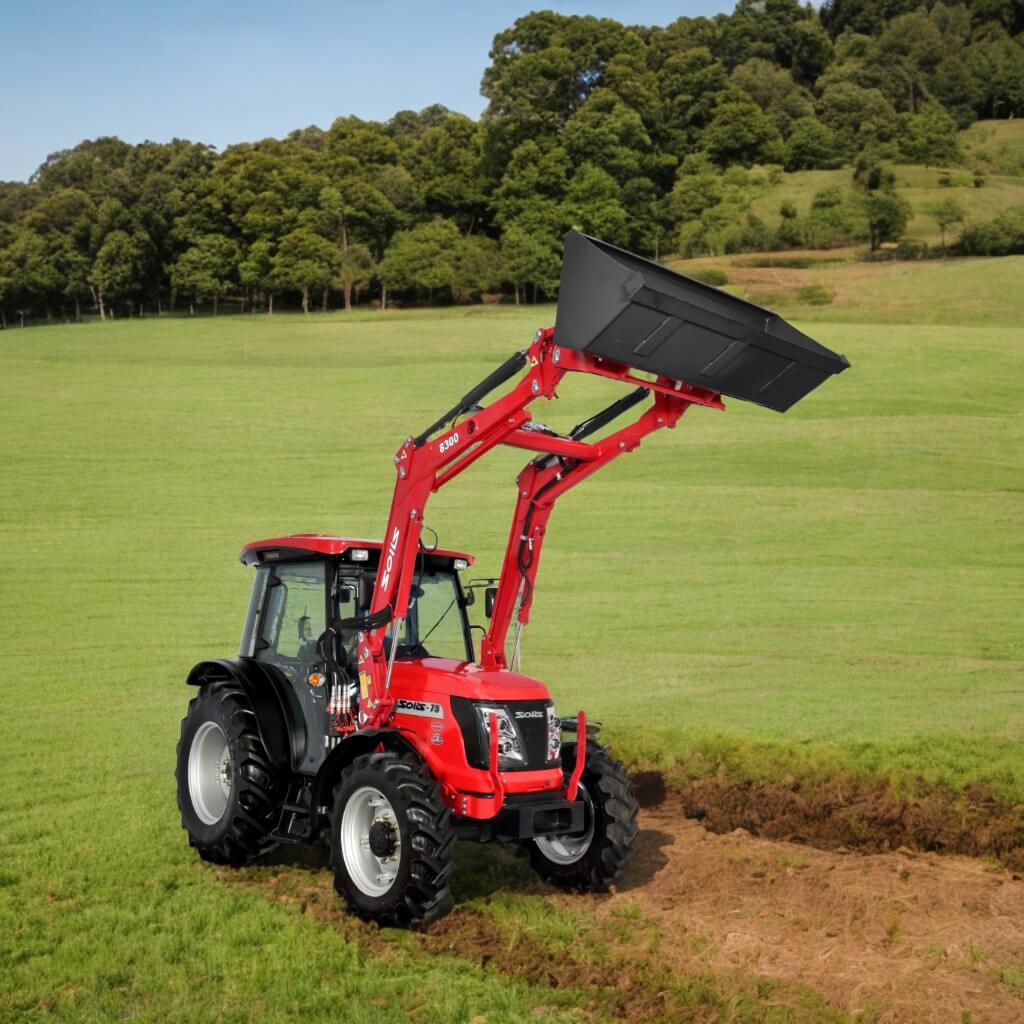

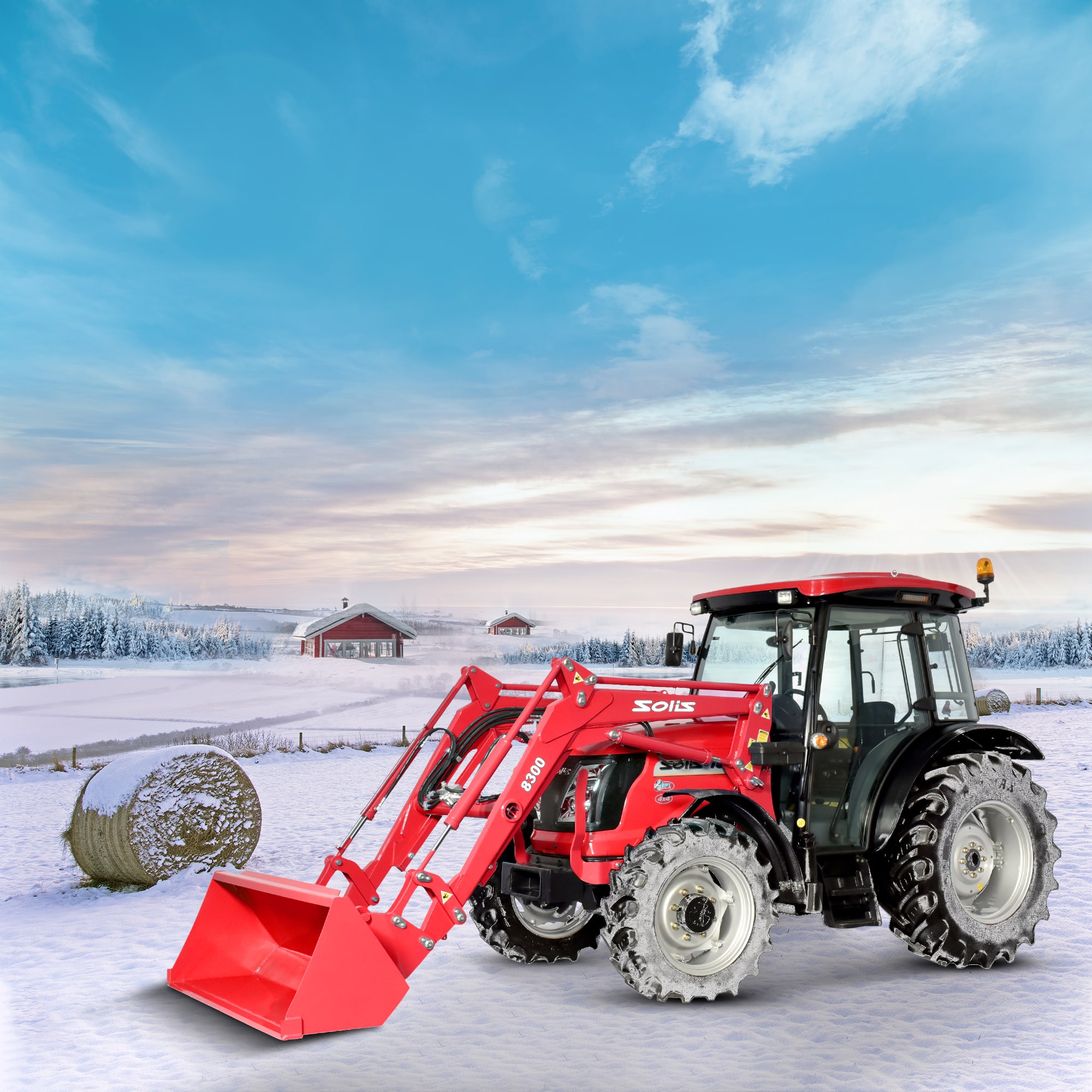

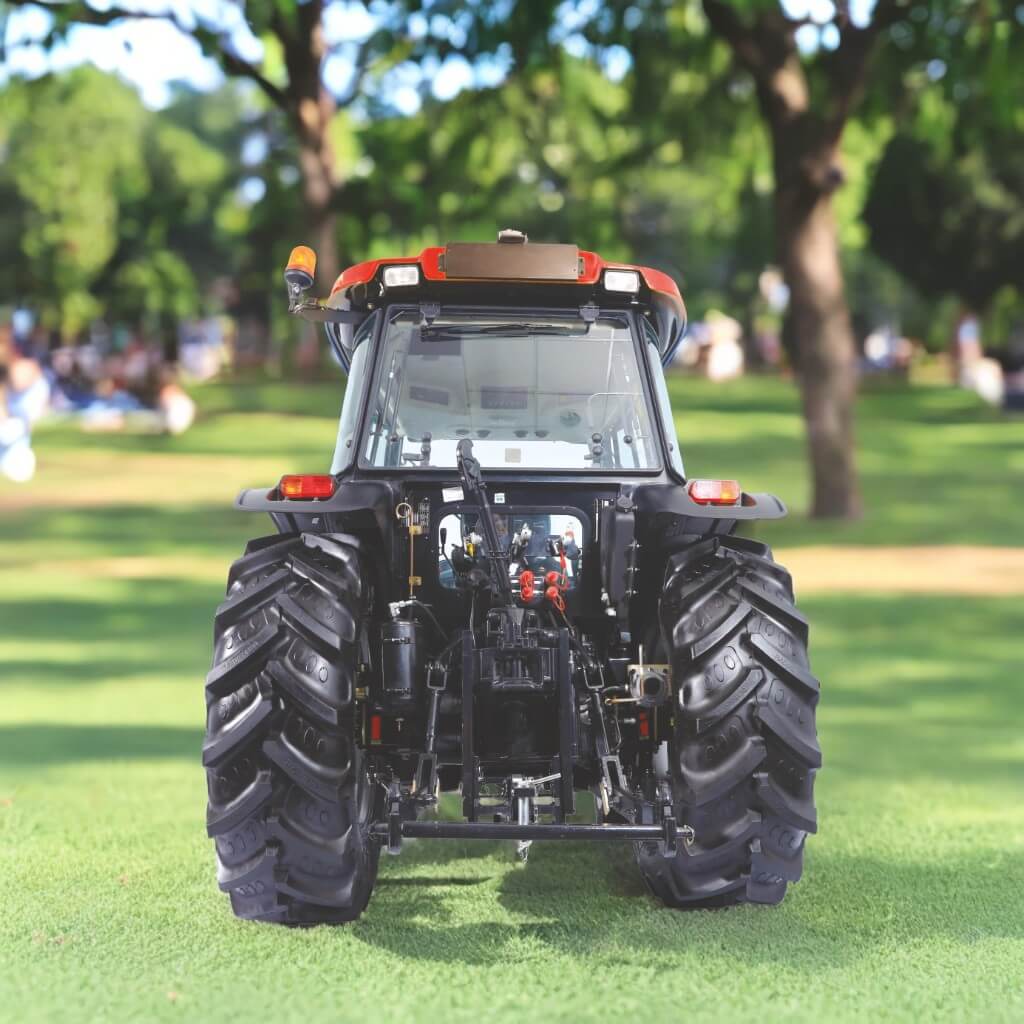

Solis S75

Toughness built to dominate

 Experience the unparalleled performance of Solis S75. Made for rugged terrains and heavy-duty farming, its advanced and robust design ensures maximum efficiency and durability. Its 4 cylinder turbo-tier four engine makes it an excellent partner that brings you productivity and achievement.

ENGINE

TURBO TIER FOUR ENGINE

Weight

HEAVIEST IN THE CATEGORY

Hydraulic Transmission

SYNCHRO SHUTTLE TRANSMISSION

100% Metal Hood Bonnet

100% METAL HOOD

Torque Master

Best-in-Class Torque

Key Features

  • High capacity fuel efficient engine
  • 4-cylinder (4 litre) turbo charged engine
  • Rear auxiliary port as standard
  • Self-leveling loader with integrated joystick
  • Curved fenders for wider tire coverage
  • Comfortable seat with arm rest
  • Best-in-class hydraulic flow
  • High end torque 336 Nm
  • Flat deck platform for operator
  • Twin projector lamps
  • Heavy-duty front axle with heavy built-in weight
  • 100% metallic hood
  • Tiltable & telescopic steering
  • 12F+12R Synchro Shuttle Transmission
  • Hydraulic lifting capacity 5511.55 lbs (6613 lbs optional)
  • Standard 2DA rear remotes
  • Quick attach three point linkage & telescopic TPL (optional)
  • Front fender (optional)
Stage V Units

Technical SPecifications

Engine Manufacturer ITL
Engine Type Turbo Charged with Intercooler
Engine HP-Gross 75
PTO HP (kw) 61
Rated Engine Speed 2000
Number of Cylinders 4
Displacement (Ci) 249
Torque (Nm) 336 @1400 ERPM
Cooling System Liquid
Air Cleaner Dry Type with Clogging Type
Starting Aid Minus 10 Degree Std
After Treatment System DOC-POC
Fuel Tank U.S. (gal.) 23
Transmission Type 12F+12R Synchromesh Shuttle Transmission
Clutch Double Clutch
Clutch Size (in) 12
Max Traveling Speed,mph (km/h) 33
Brakes Wet Disc
Steering Hydraulic
PTO Type Independent
PTO Control Mechanical
PTO Rear (RPM) 540@1904
Pump Type Open Center
Max Total Flow including Steering (gal.) 19
Category, 3 Point Hitch CAT II
3-Point Hitch Lift Capacity at Link Ends 4850 lbs, 5732 lbs (Optional)
Lift Control type PC-DC
Rear Remote Valves 2DA
Overall Length (in) 159
Overall Width (in) 79
Wheelbase (in) 92
Height (in) 101
Min Ground (in) 15
Total Weight (lbs) 7771
Agri TireR1 Agriculture 11.2-24 & 16.9-30
Radial GariRadial 280/85R30 & 420/85R30
IndustrialR4 Industrial 12.5/80 & 18.4-24
IndustrialR4 Industrial 12.5/80 & 19.5L-24
IndustrialR4 Industrial 12.5/80 & 16.9X24

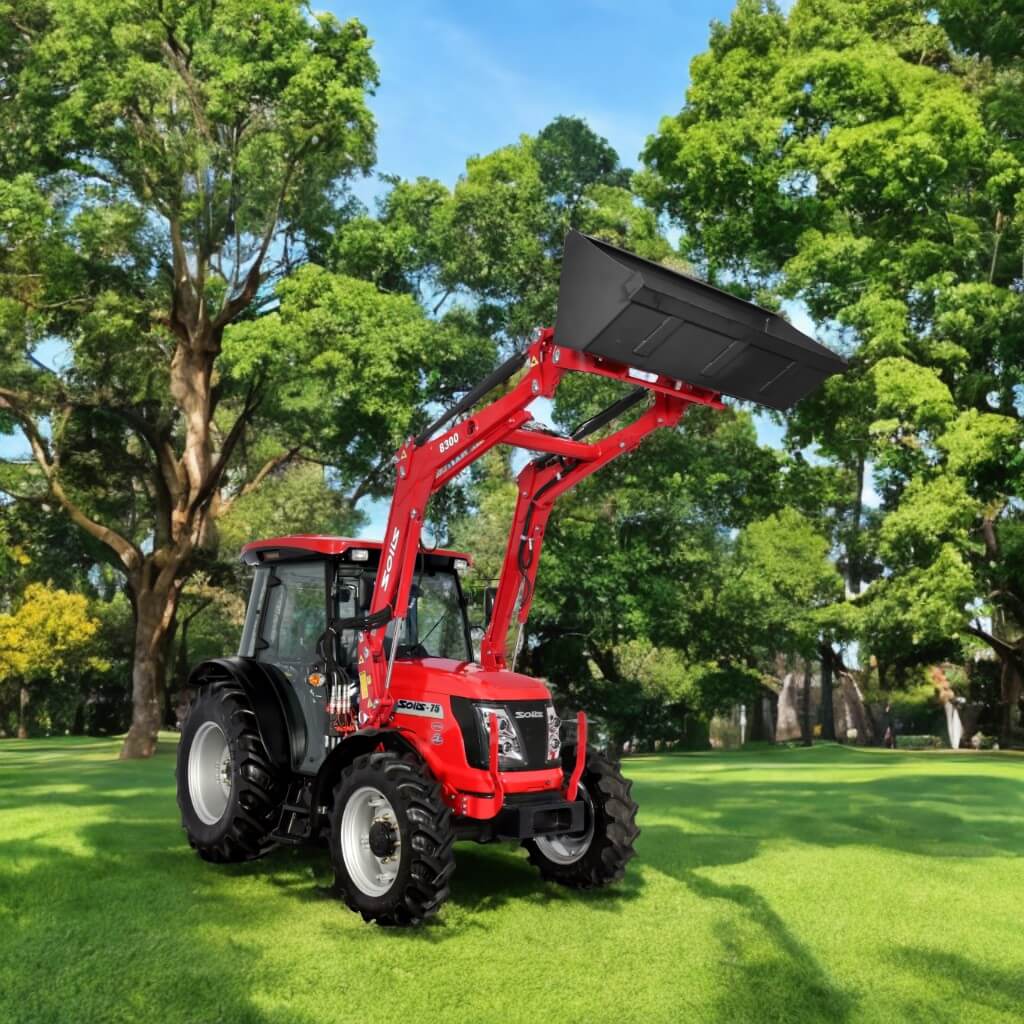

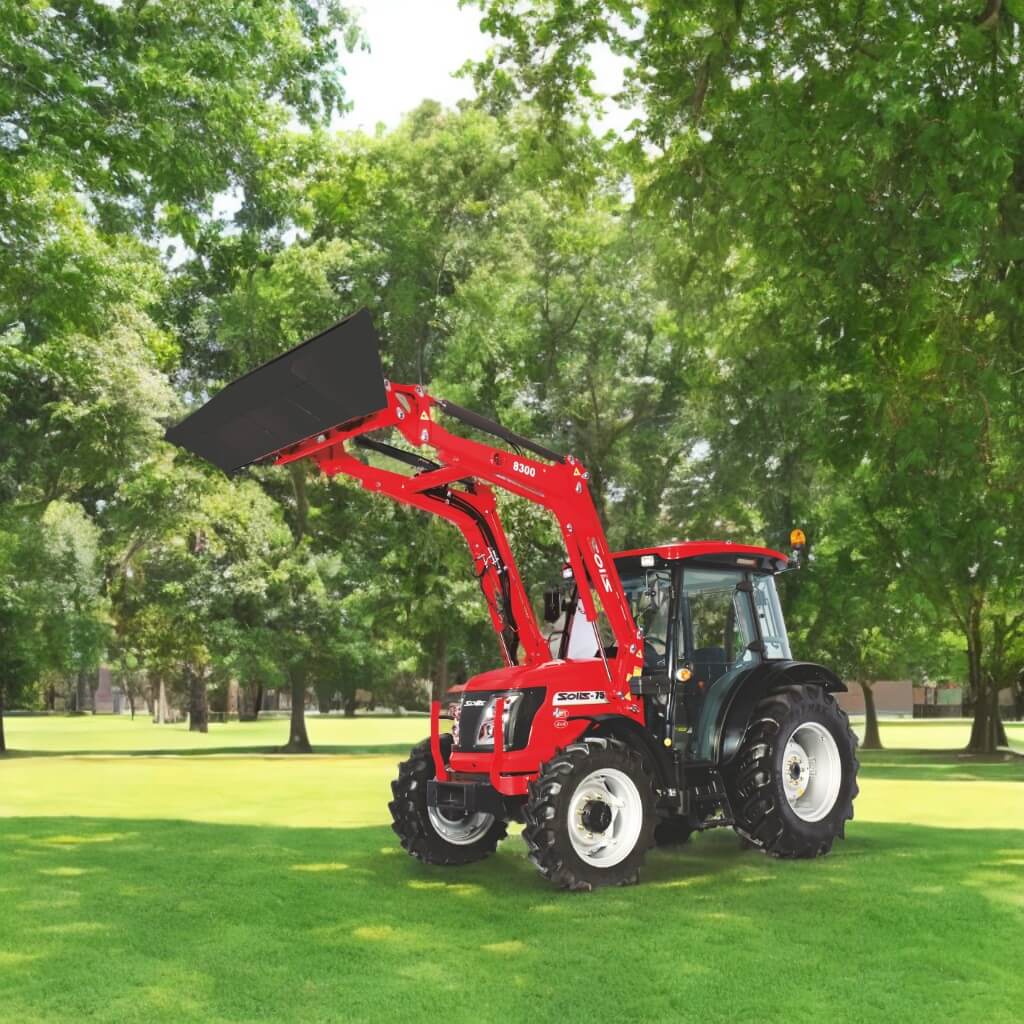

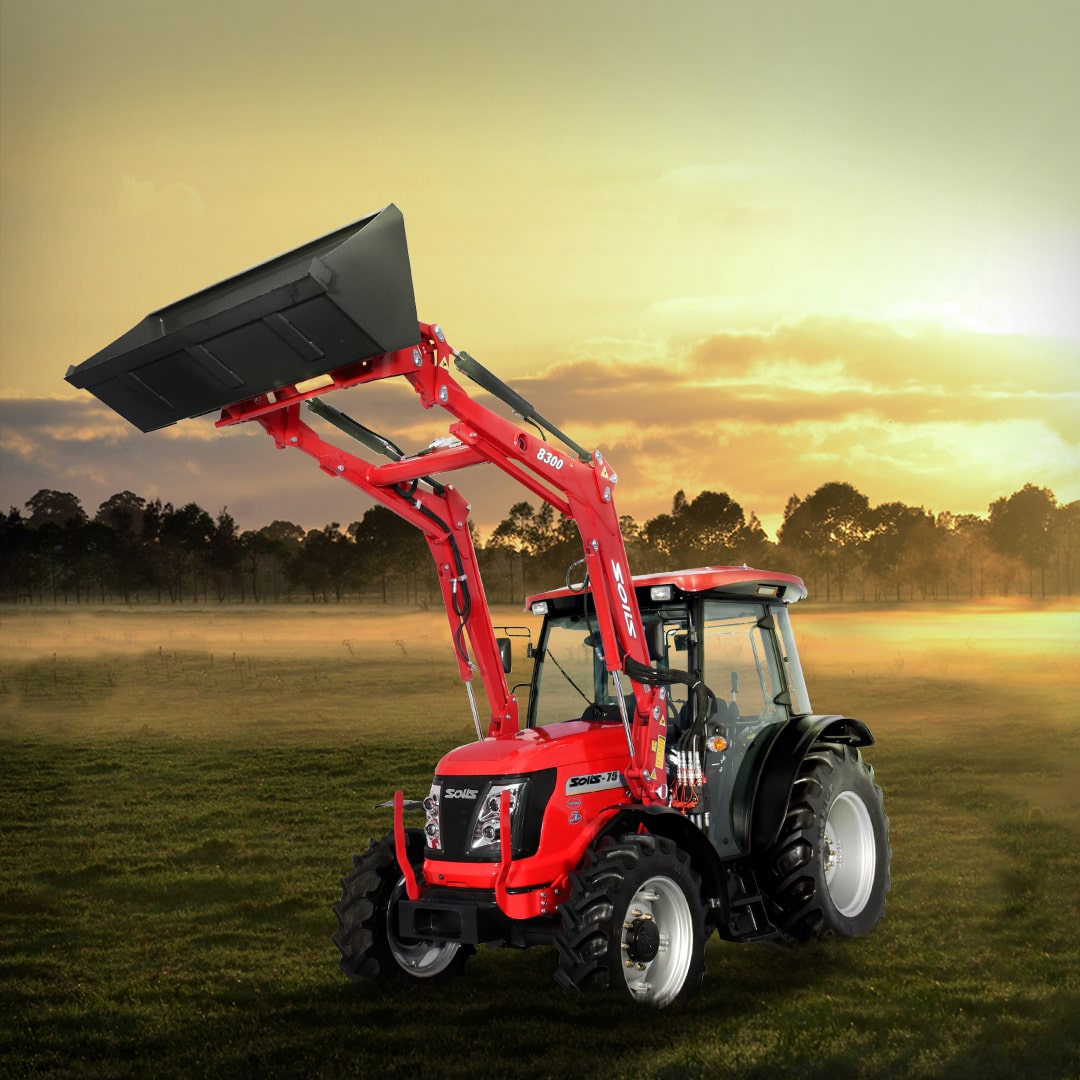

LOADER MODEL 8300
Max Lift Height at Pivot Point (in) 136
Clearance with Attachment Dump (in) 103
Max Dump Angle (Deg.) 54
Attachment Rollback Angle (Deg.) 46
Digging Depth Below Grade (in) 11
Bucket Width (in) 72
Lift Capacity to Full Height @ Pivot Points (lbs) 2866
Loader Weight Including Bucket (lbs) 1764



Major Applications

The powerful and versatile Solis S75 tractor is designed for optimum performance in farming and all other applications. Its powerful engine makes heavy-duty farming easy. The loader operations are handled with utmost efficiency and seamless performance.
